10-Amp 8-in Spiral Benchtop Jointer with Extendable Table

$95.00

Availability: 100 in stock

Category:

WEN 10-Amp 8-in Spiral Benchtop Jointer with Extendable Table

Remember when you had a perfectly square jointer to flatten out your boards and workpieces? Maximize precision with the WEN 8-Inch Spiral Benchtop Jointer. Our spiral cutterhead utilizes 16 staggered HSS blades to provide a perfect finish to hard and soft woods alike, while the powerful 10-amp motor rotates the cutterhead up to 12,000 times per minute. Adjust the infeed table to remove 0 to 1/8-inch of material with each pass, with a reliable depth-of-cut scale for maximum accuracy. The spacious table measures in at 33 by 8 inches with support arms that extend up to 51 inches for longer workpieces. Bevel the fence up to 45 degrees to create angled cuts along the faces of your boards. The spring-loaded blade guard helps protect against accidental injury, only exposing a limited section of the cutterhead during jointing operation. This package also includes two push blocks for safer jointing and an onboard dust port for minimal cleanup. Compatible with the WEN BP510H Replacement Spiral Blades. And, because it??s a WEN product, the WEN 8-Inch Benchtop Jointer comes backed by a two-year warranty, a stocked inventory of replacement parts, and a friendly customer help line, all to make sure you remember WEN.

  • Spiral cutterhead system utilizes 16 staggered HSS blades for an ultra fine finish

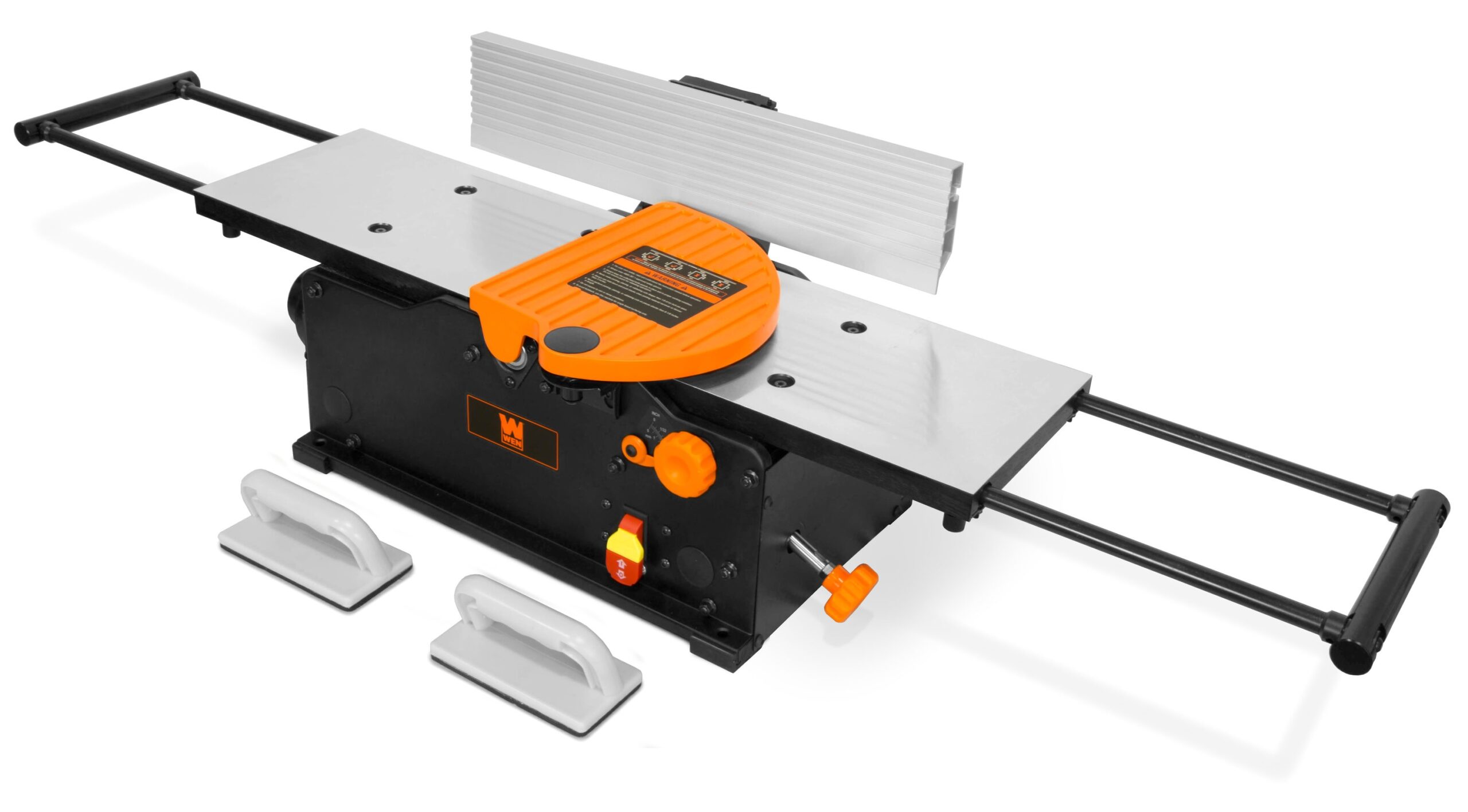

  • Features a spacious 33-by-8-inch table with support arms that extend up to 51 inches
  • Remove 0 to 1/8 of an inch of material with each pass

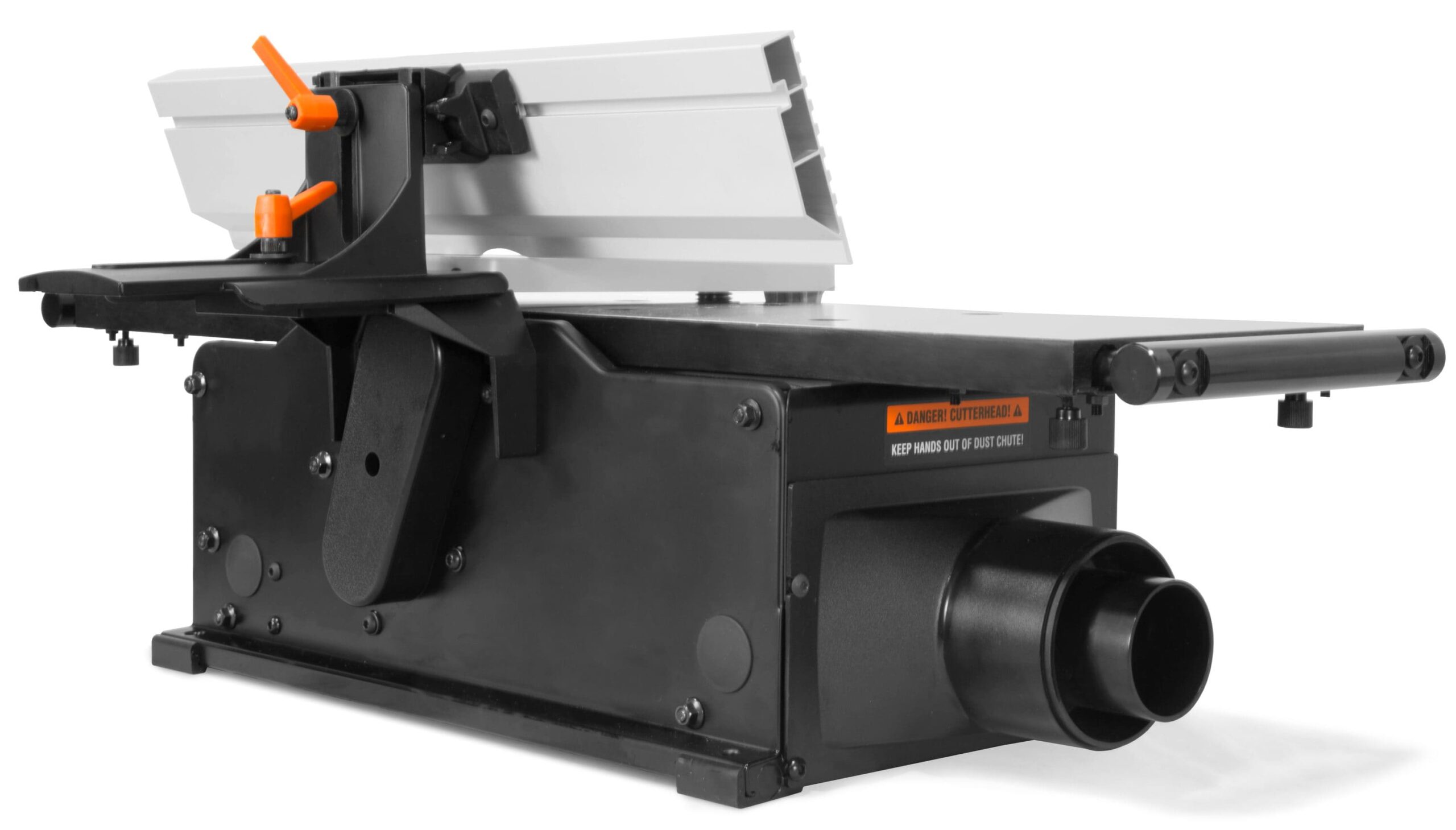

  • Adjustable 19-3/4 by 4-1/4-inch fence bevels up to 45 degrees
  • Includes an onboard depth-of-cut scale, two push blocks, 2-1/2 and 4-inch dust ports, and a two-year warranty

Specifications

General
Color/Finish Family Black
Dimensions
Adjustable Depth Stops No Maximum Board Thickness (Inches) 20
Assembled Height (Inches) 12.5 Maximum Board Width (Inches) 8
Assembled Width (Inches) 34.5 Maximum Cutting Depth (Inches) 0.125
Blade Length (Inches) 0.56 Rabbeting Depth (Inches) 0
Depth Adjustment Yes Table Length (Inches) 51
Depth Measurement System Yes Table Width (Inches) 8
Fence Height (Inches) 4.25 Tool Weight (lbs.) 55.1
Fence Length (Inches) 19.75
Features
Accessories Included Yes Lock On Switch Yes
Amperage (Amps) 10 Maximum RPM 12000
Blade Material Steel Number of Blades 16
Dust Collection Yes Positive Stops No
Fence Material Aluminum Quick-Change Knife System No
Fence Tilt Yes Table Material Aluminum
Fence Tilt Range in Degrees 45 Variable Speed No
Heavy Duty Stand Included No Voltage (Volts) 120
Helical Head Yes
Warranty
Warranty 2-year limited
Certifications
CA Residents: Prop 65 Warning(s)
