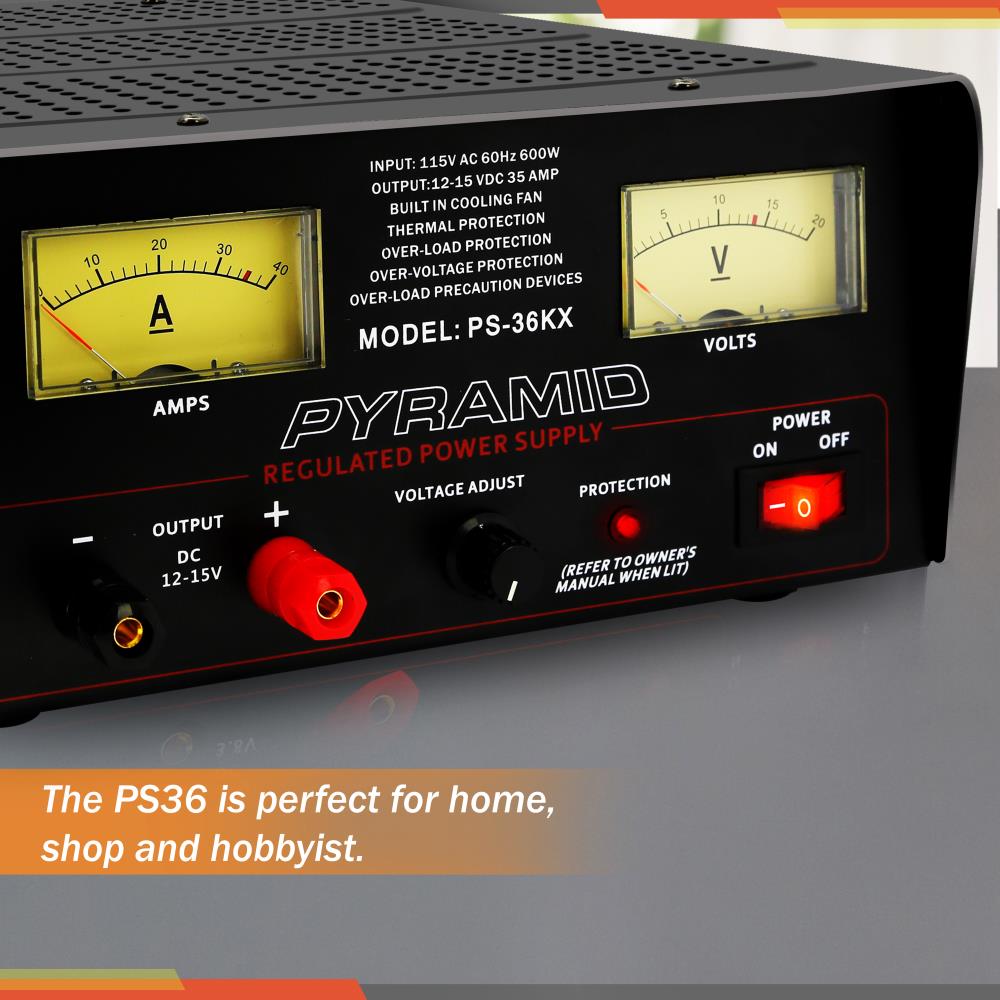

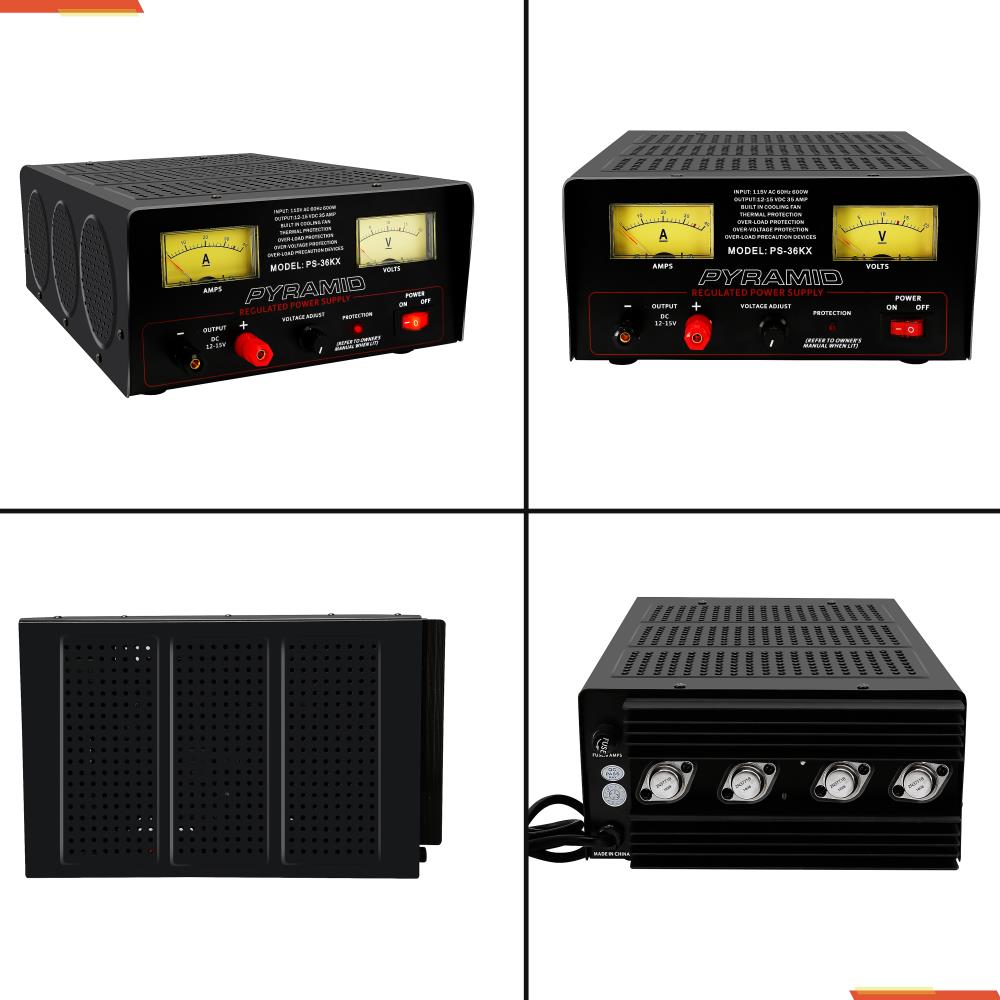

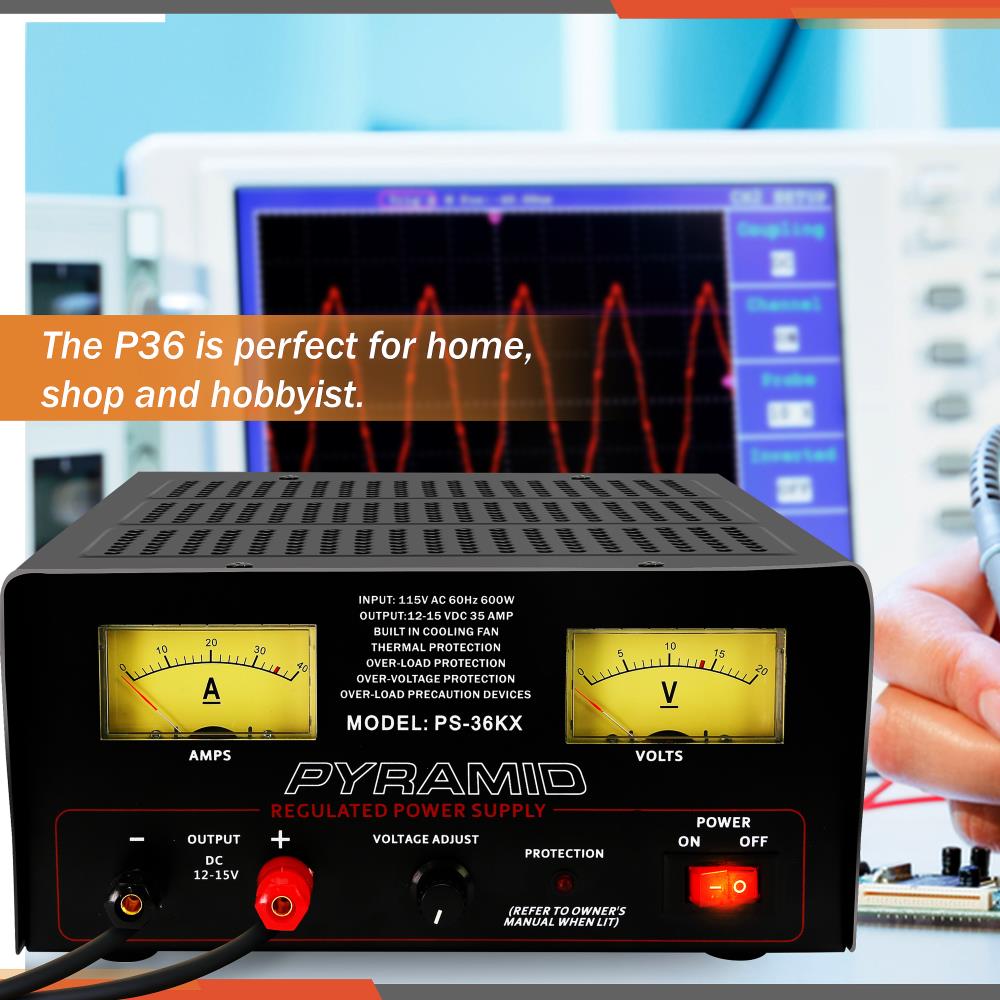

32 Amp Hobbyist Bench Power Supply

The Pyramid Power Supply provides convenient and reliable AC-to-DC power performance. Universal hardwired screw-type connection terminals are hassle-free and ensure compatibility with a wide range of device equipment & components. Simple electronic plug-in operation provides a constant source of DC voltage, allowing for quick and consistent power conversion. Switch-activated power control eliminates the need of an external battery or additional power source — while the built-in electronic overload and short-circuit protection ensure safety of the operator & any connected electrical devices. The Pyramid Bench Power Supply makes for a great addition to any hobbyist work desk or equipment testing station.

• Features: – Hassle-Free Screw Terminal Connectors – Electronic Overload & Short Circuit Protection – Power ON / OFF Switch – Power Output: 12-15V DC, Adjustable
• Linear / Regulated Power Supply Design – Eliminates the Need of Battery or External Power Source – Used for Component & Device Equipment Testing, Operation & Performance – Power Input: 115V AC, 60Hz (600 Watt)
• AC-to-DC Power Conversion (12V DC) – Analogue Gauge Amperage & Voltage Metered Display – Rugged & Durable Housing Construction, Cabinet Heatsink – Pyramid Compact Hobby Power Supplies Safe for Tabletop Placement Technical Specs:
• Provides Constant Source of DC Voltage – Rotary Control Voltage Level Adjustment – LED Indicator Light – Amperage: 32.0 AMP (Constant), 35.0 AMP (Surge) – Dimensions (L x W x H): 14.0” x 9.1” x 4.9” -inches
• Simple Electronic Plug-in Operation – Fuse Protected with Auto-Reset – Built-in Cooling Fan – Connectors/Hardwire Terminals: Red Positive (+), Black Negative (-)

TABS Details

DETAILS

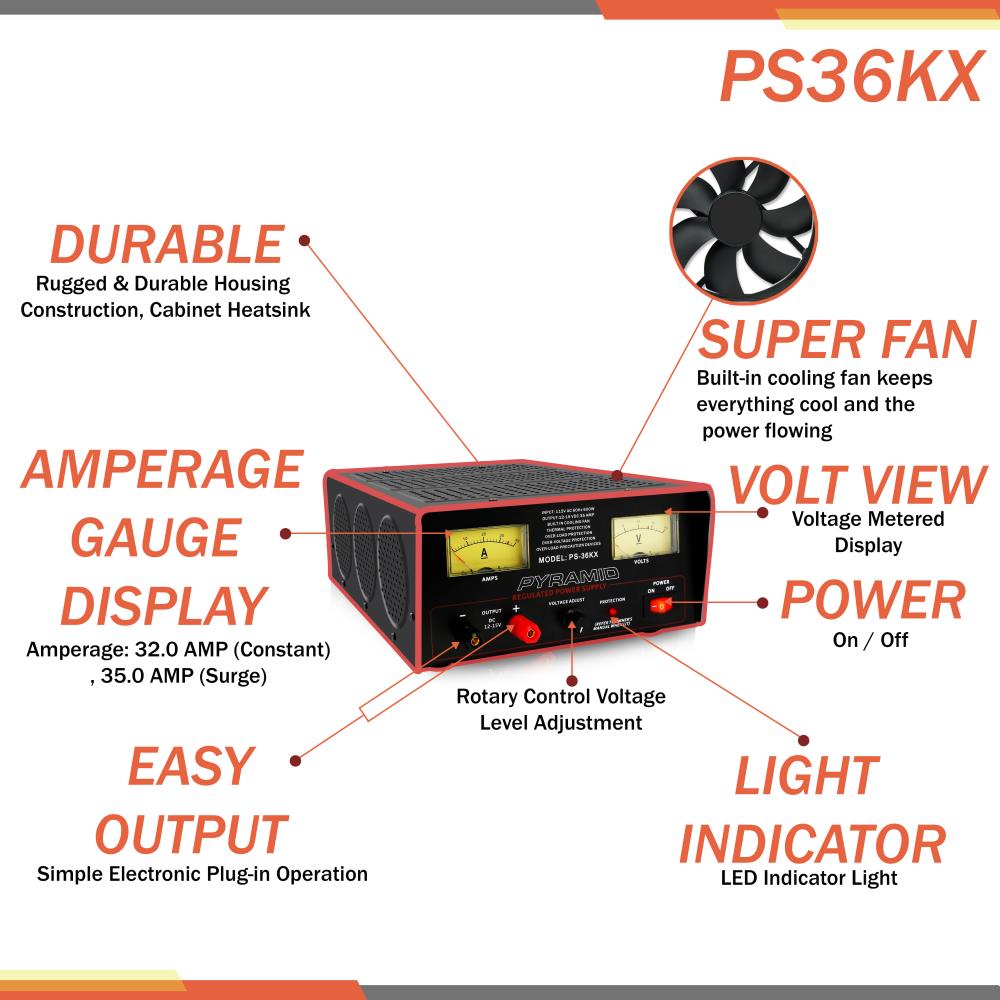

Features:

• Linear / Regulated Power Supply Design
• AC-to-DC Power Conversion (12V DC)
• Provides Constant Source of DC Voltage
• Simple Electronic Plug-in Operation
• Hassle-Free Screw Terminal Connectors
• Eliminates the Need of Battery or External Power Source
• Analogue Gauge Amperage & Voltage Metered Display
• Rotary Control Voltage Level Adjustment
• Fuse Protected with Auto-Reset
• Electronic Overload & Short Circuit Protection
• Used for Component & Device Equipment Testing, Operation & Performance
• Rugged & Durable Housing Construction, Cabinet Heatsink
• LED Indicator Light
• Built-in Cooling Fan
• Power ON / OFF Switch
• Pyramid Compact Hobby Power Supplies Safe for Tabletop Placement

Technical Specs:

• Amperage: 32.0 AMP (Constant), 35.0 AMP (Surge)
• Connectors/Hardwire Terminals: Red Positive (+), Black Negative (-)
• Power Output: 12-15V DC, Adjustable
• Power Input: 115V AC, 60Hz (600 Watt)
• Dimensions (L x W x H): 14.0” x 9.1” x 4.9” -inches

MANUALS & DOWNLOADS

PS36KX – Manuals
