Grizzly Industrial H8192 1 in. x 42 in. Belt/8 in. Disc Combo Sander

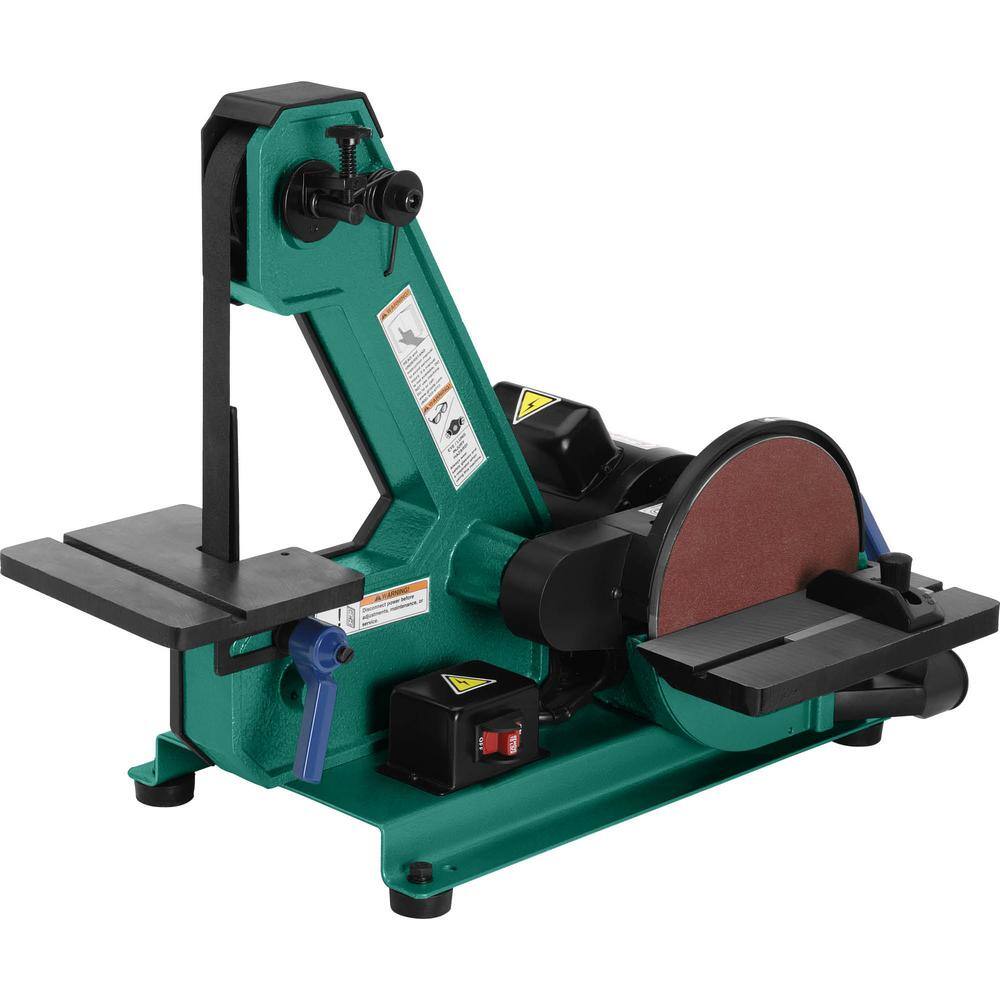

H8192 1 in. x 42 in. Belt / 8 in. Disc Combo Sander A perfect match for your bandsaw or scroll saw. The H8192 1 in. x 42 in. Belt / 8 in. Disc Combo Sander will shape and smooth right to the line. Great for touching up work on your small jobs that need a little attention. A 1/3 HP, capacitor-start induction motor powers the 1 in. x 42 in. belt and 8 in. disc through any sanding chore and the cast-iron tilting tables give you the flexibility you demand. Features single-knob tracking to get your belt back on track. The two 2 in. dust ports easily connect to your dust collection system. For a full range of replacement belts for the H8192, shop here. Replacement PSA sanding discs are available in a variety of grits. Like all Grizzly combo sanders, the H8192 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty. ) SPECIFICATIONS Motor: 1/3 HP, 110V, single-phase, 4A Sanding belt size: 1 in. x 42 in. Sanding belt speed: 3000 FPM Belt platen size: 1 in. x 4 in. Belt sanding table size: 6 in. x 7 in. Disc diameter: 8 in. Disc backing type: PSA Disc speed: 1725 RPM Disc sanding table size: 4 in. x 10 in. Table tilt: 0-45?? Number of dust ports: 2 Dust port sizes: 2 in. Footprint: 11 in. x 18-1/4 in. Overall dimensions: 19-1/2 in. W x 26 in. D x 14-1/2 in. H Approximate shipping weight: 64 lbs.

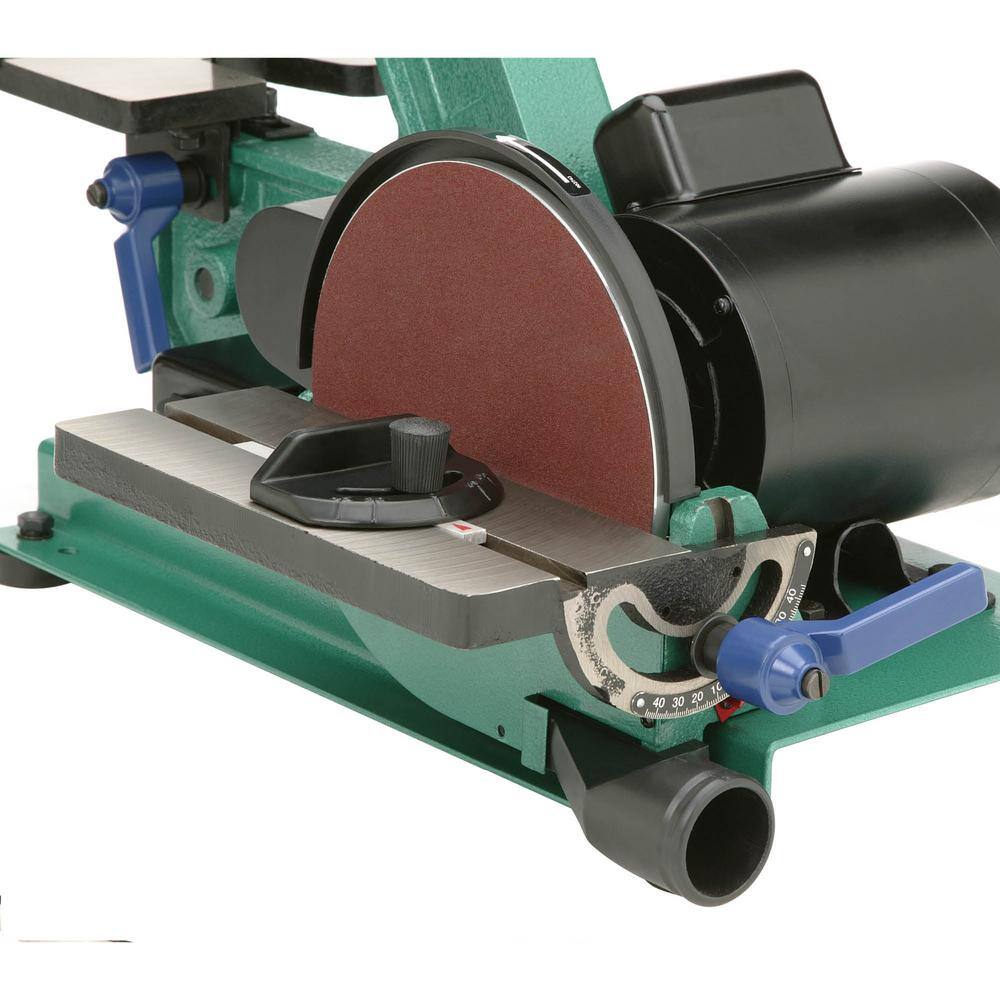

- Dual cast-iron tables with miter slots
- Both tables tilt to 45??
- Two 2 in. dust ports

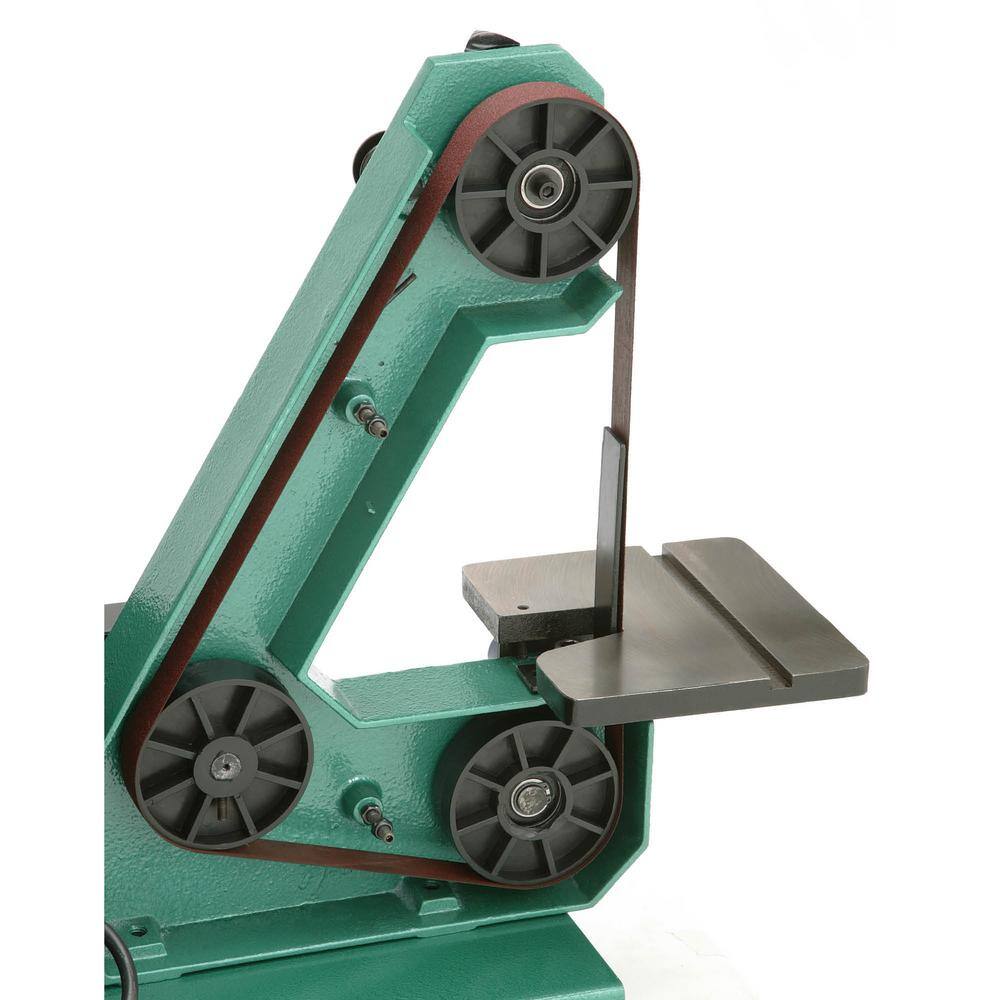

- Single-knob belt tracking
- Includes 80 grit belt and disc
Dimensions
|
Belt length (in.) |
42 |
Belt width (in.) |
1 in |
|---|---|---|---|
|
Disc table length (in.) |
10 |
Disc table width (in.) |
4 |
|
Product Depth (in.) |
19.5 in |
Product Height (in.) |
14.5 in |
|
Product Width (in.) |
26 in |
Details
|
Amperage (A) |
4 A |
Bench & Stationary Tool Type |
Sander |
|---|---|---|---|
|
Color Family |
Green |
Condition |
New |
|
Cord Length (ft.) |
0 ft |
Dust collection type |
Port |
|
Maximum belt sanding speed (ft./min.) |
3000 |
Maximum Speed (RPM) |
1725 RPM |
|
Minimum belt sanding speed (ft./min.) |
3000 |
Portability |
Bench |
|
Power Tool Features |
No Additional Features |
Product Weight (lb.) |
58.5 lb |
|
Reconditioned |
No |
Variable Speed |
No |
|
Tools Product Type |
Power Tool |
|
|
