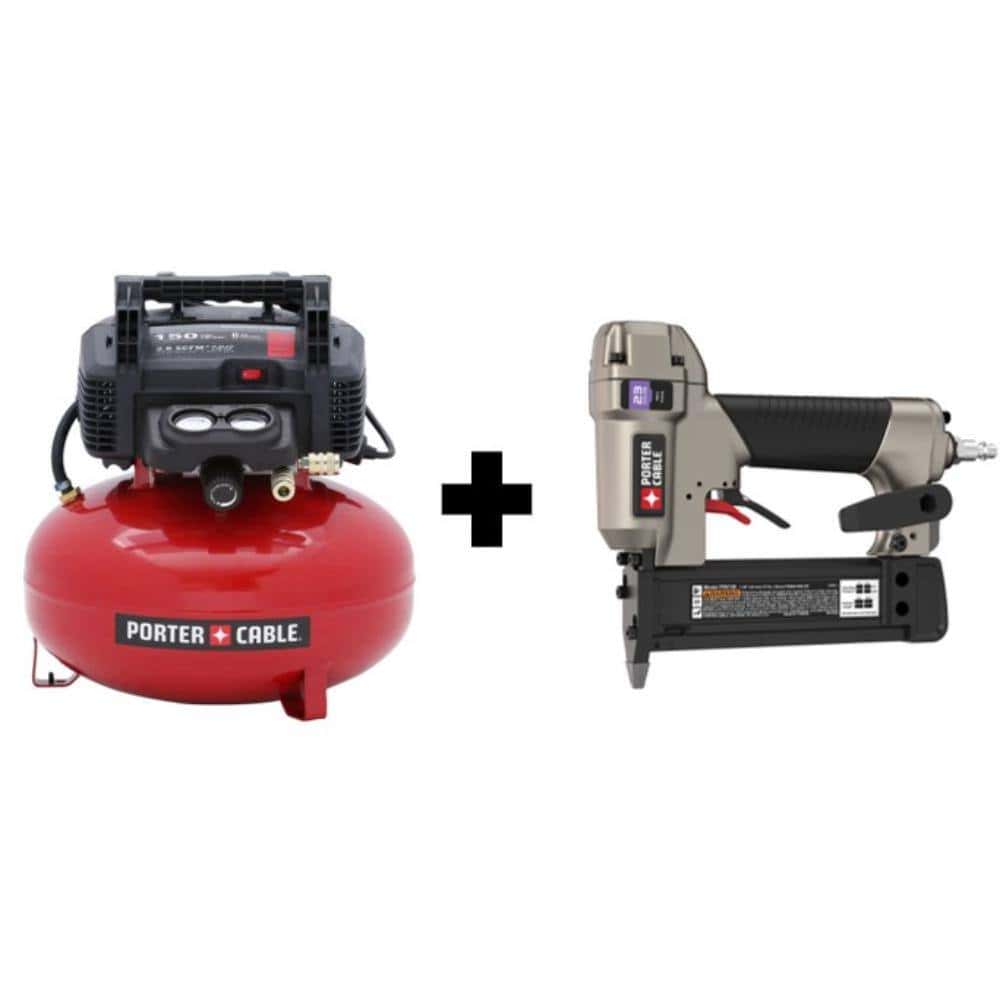

Porter-Cable PIN138C2002 6 Gal. 150 PSI Portable Electric Air Compressor and Pneumatic 23-Gauge 1-3/8 in. Pin Nailer

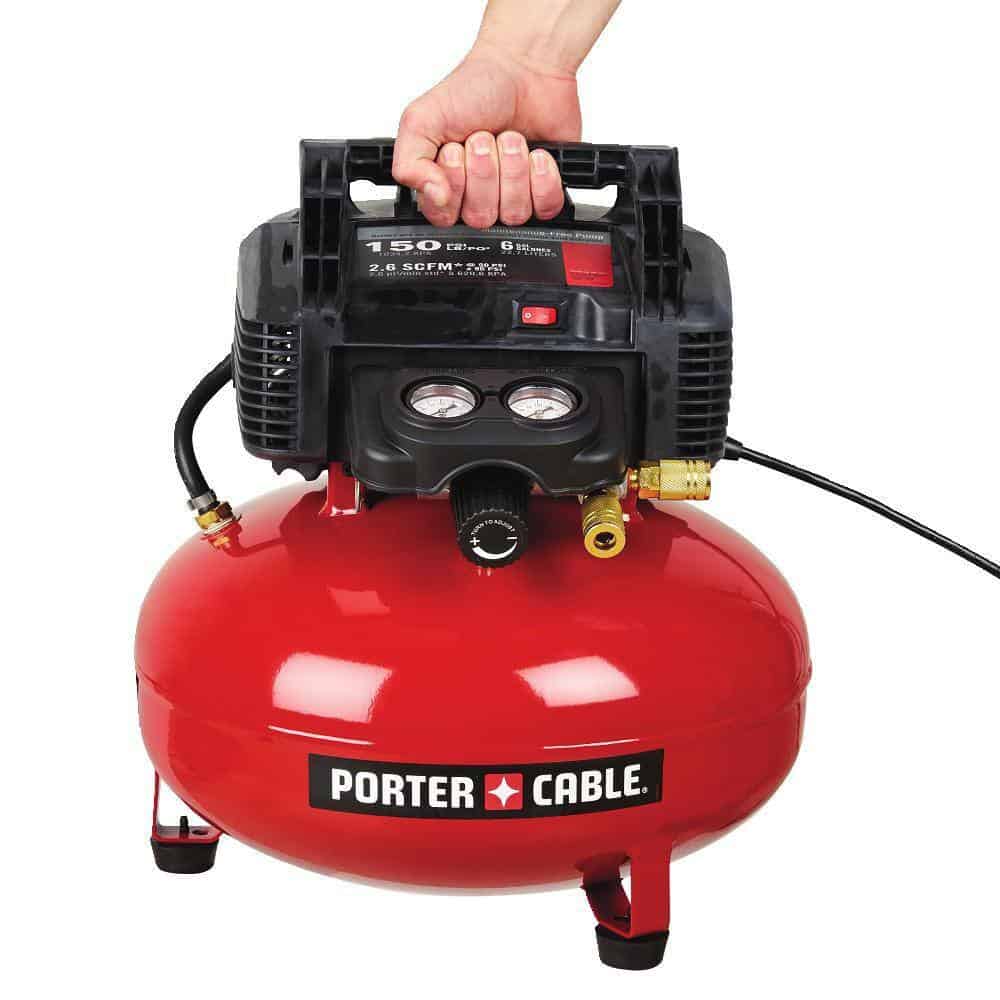

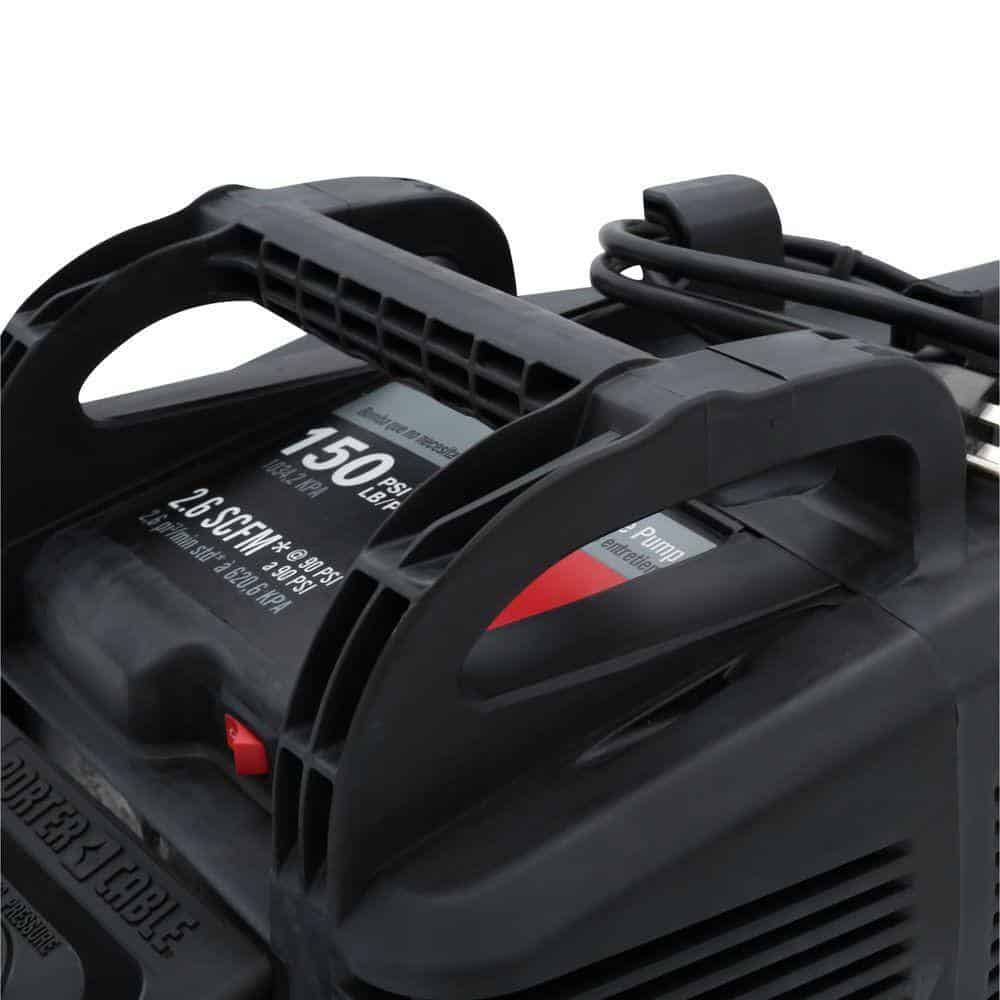

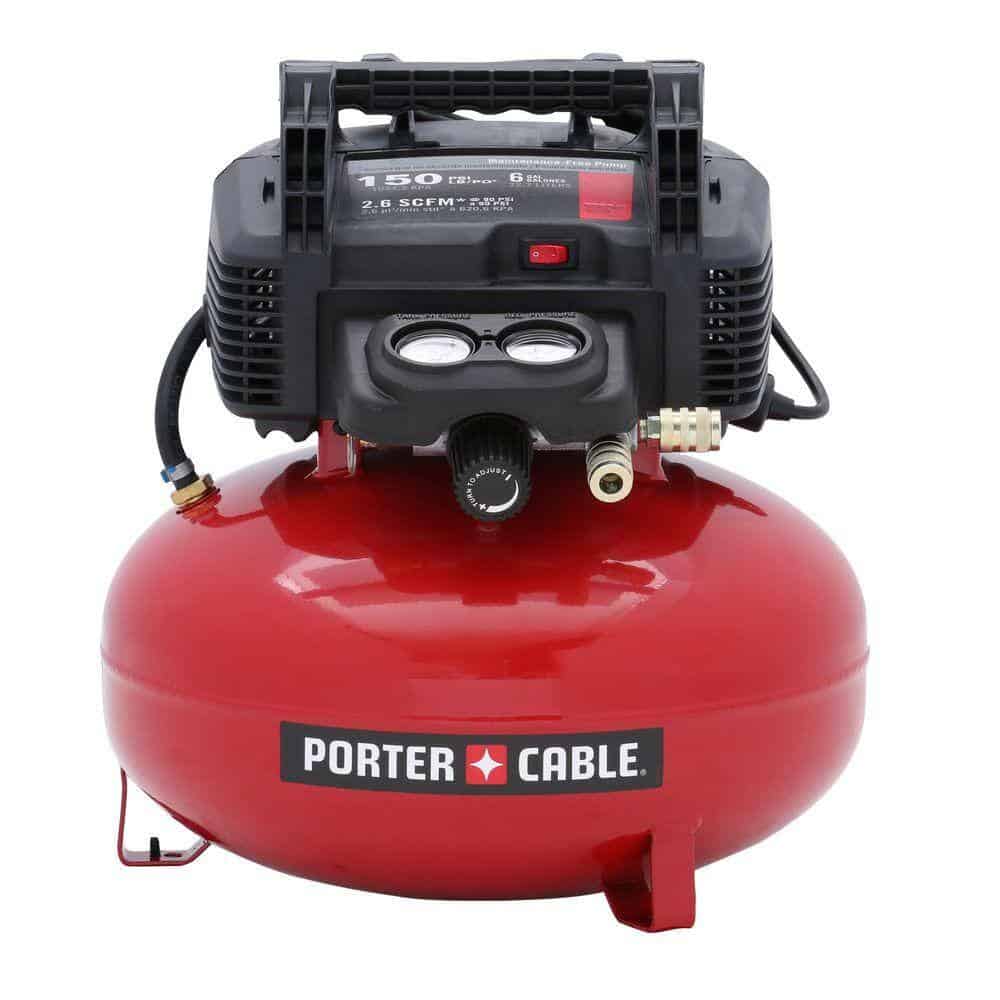

The Porter-Cable Pin138 23-Gauge 1-3/8 in. Pin Nailer is ideal for materials that might split using larger tools or fasteners. It features an oil-free, low-maintenance design and a screwdriver handle that you??ll appreciate when working in tight spaces. A handy light illuminates your work surface when needed. Typical uses include furniture assembly and installation of mini blinds or decorative shelving. This kit also includes the Porter-Cable C2002 150 PSI, 6 Gal. Oil-Free Pancake Compressor which is ideal for multiple trim finishing nailers, small framing/roofing jobs and all general inflation, blowing and smaller SCFM air tools. This compressor features a low Amp 120-Volt motor that starts easily in cold weather or with an extension cord. The C2002 is designed for portability with light weight (34 lbs.) and an integrated carry handle.

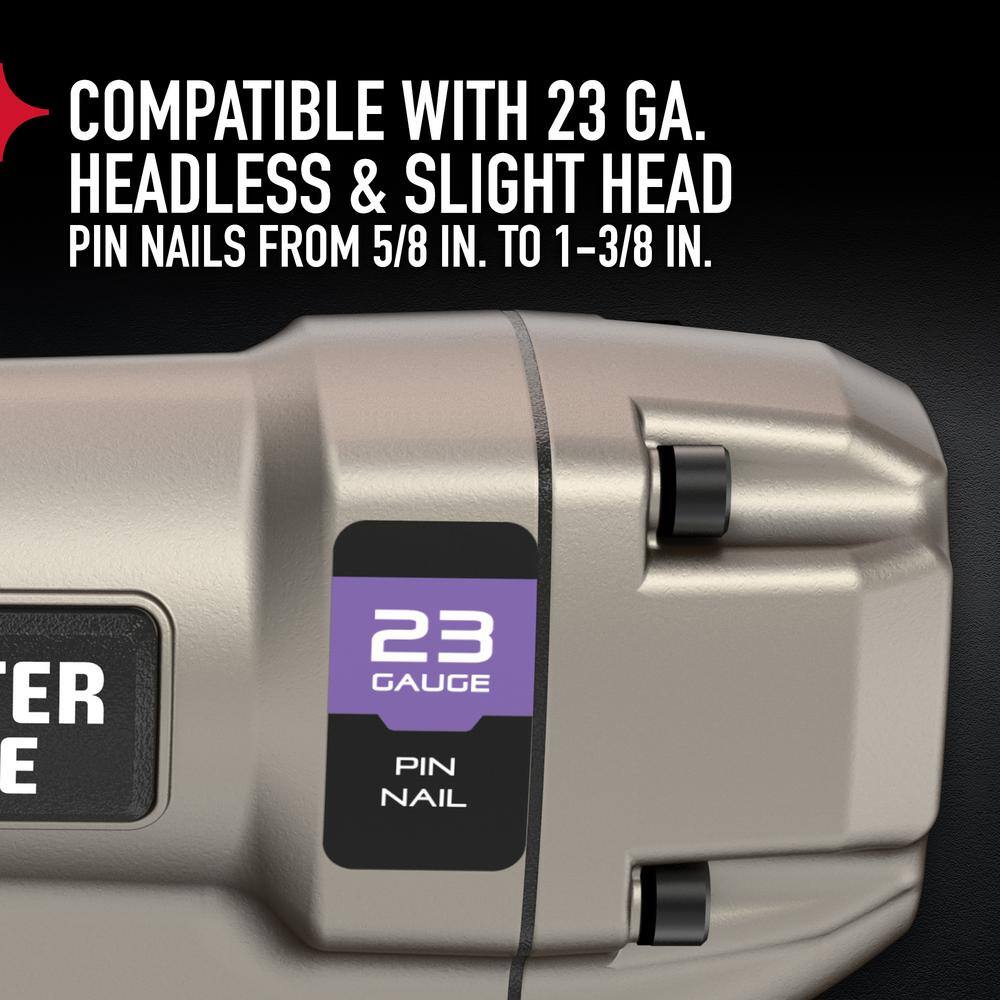

- Uses 23-Gauge headless and slight head pin nails from 5/8 in. to 1-3/8 in. length

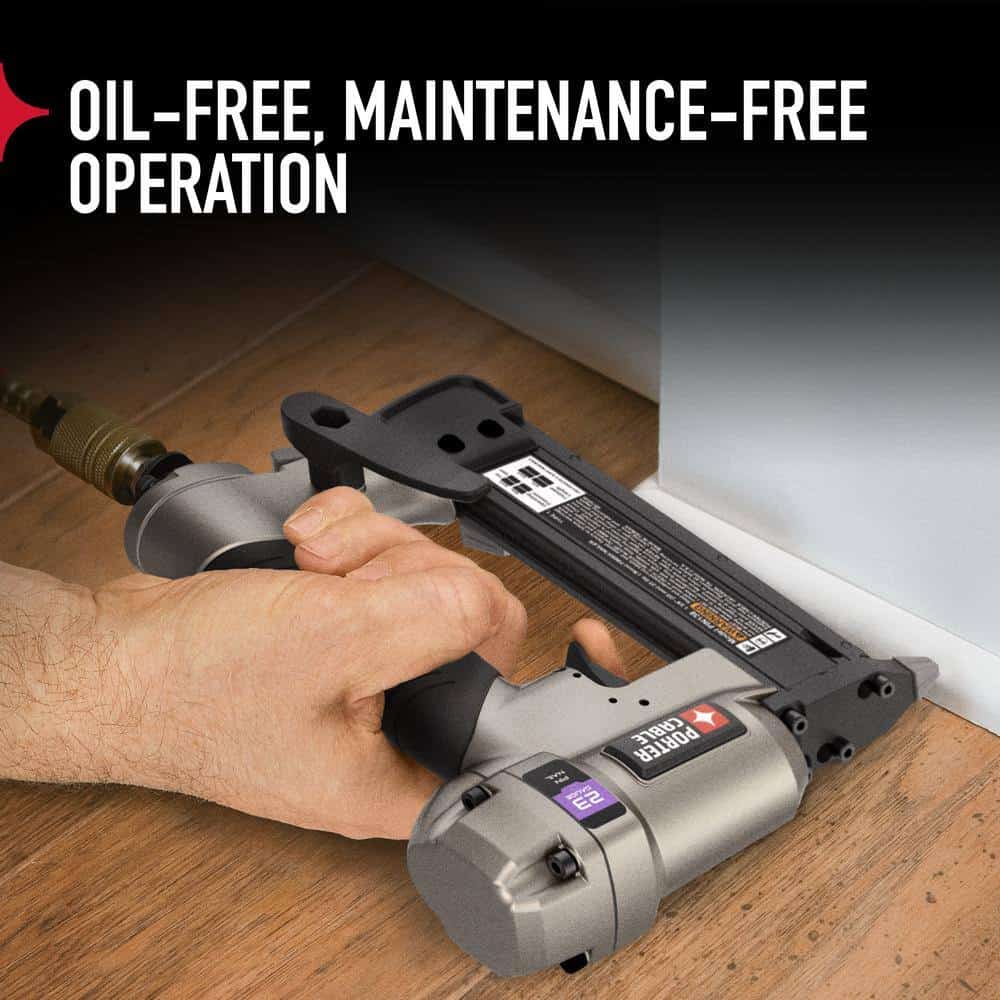

- Long life maintenance free nailer motor

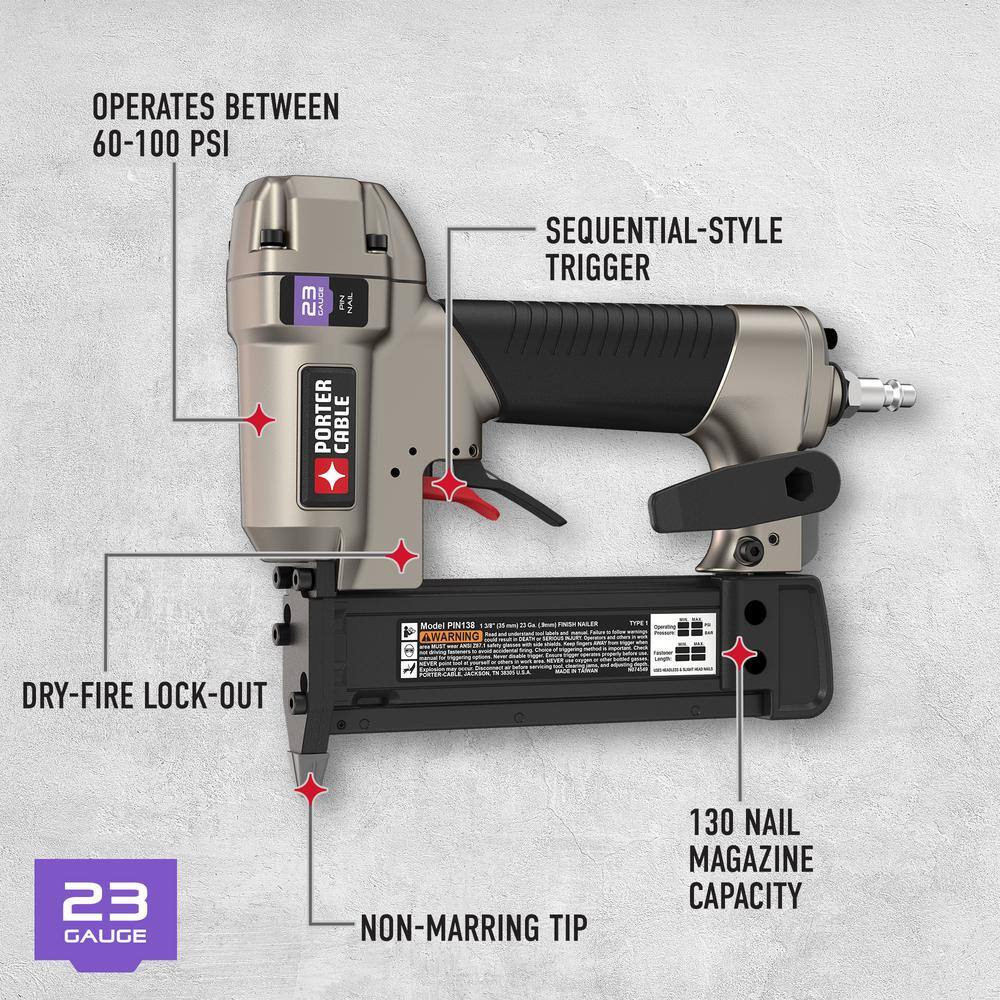

- Dry-fire lock-out

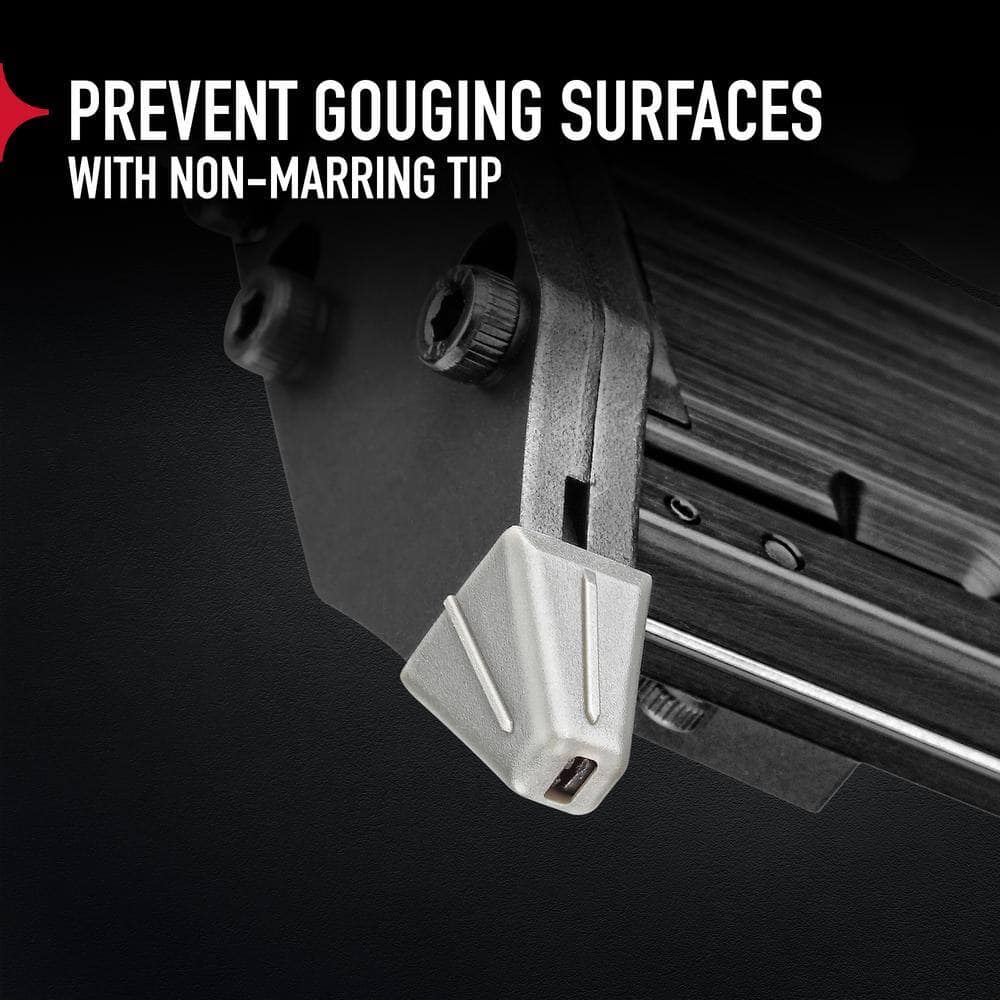

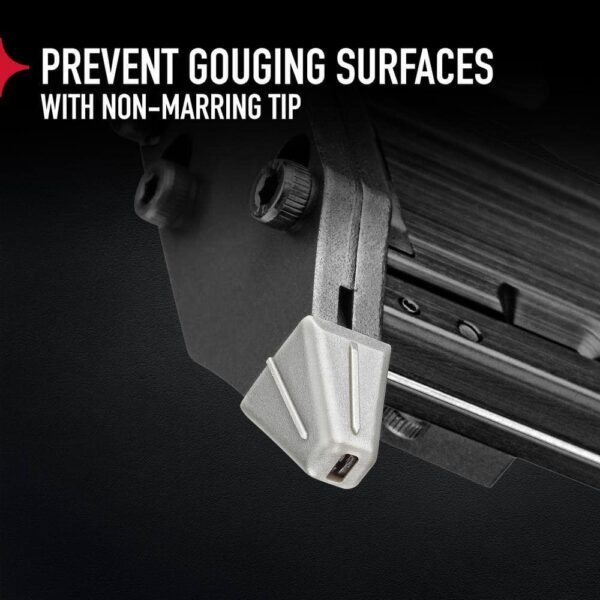

- Narrow nose design
- Low nail reload indicator
- 150 PSI max tank
- 6 Gal. pancake style tank
- Low amp 120-Volt motor
- Durable oil-free pump
Dimensions
| Product Depth (in.) | 17 in | Product Height (in.) | 24.38 in |
|---|---|---|---|
| Product Width (in.) | 17 in |
Details
| Air Delivery SCFM @ 40PSI | 3.5 | Air Delivery SCFM @ 90PSI | 2.6 |
|---|---|---|---|
| Amperage (A) | 10 A | Application Use | Air Brushing, Blow Cleaning, Bolting, Brad Nailing, Finish Nailing, Framing Nailing, Hobby Painting, Inflation, Spraying, Stapling, Wrenching |
| Compressor Tank Capacity (gal.) | 6 gal | Compressor Type | Industrial |
| Compressor Volume Rating | Quiet | Compressor/Air Tool Features | Combo Kit |
| Decibel Rating (Outdoor) | 82 dBA | Horsepower (hp) | 0.8 hp |
| Included | No additional components or accessories are included | Lubrication Type | Oilless |
| Maximum Pressure (PSI) | 150 PSI | Portable | Yes |
| Power Source | Electric | Power Type | Corded Electric |
| Product Weight (lb.) | 34 lb | Voltage (V) | 120 V |
| Stage Count | Single Stage | Tank Material | Steel |
| Tank Style | Pancake | Tools Product Type | Air Compressor Kit |
Reviews
There are no reviews yet.
