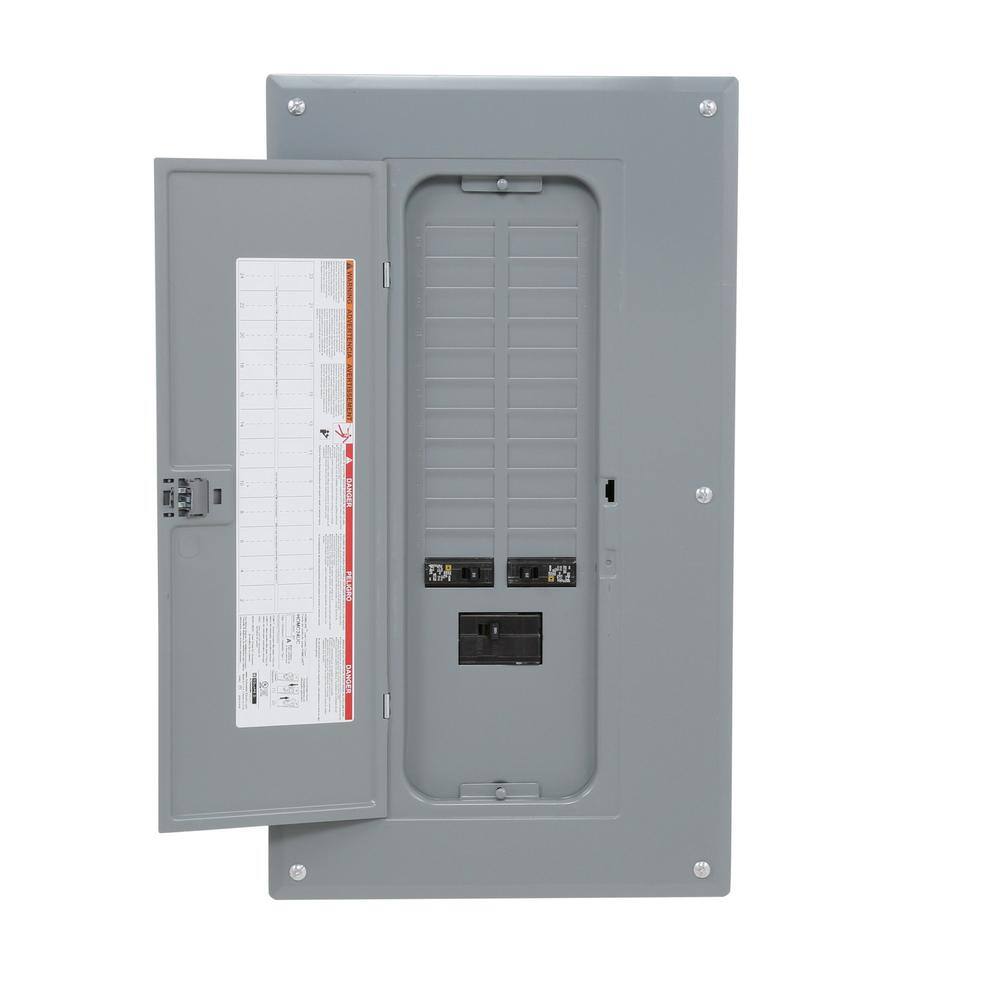

Square D HOM2448M100PCVP Homeline 100 Amp 24-Space 48-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Cover(HOM2448M100PCVP)
The Square D by Schneider Electric Homeline Value Pack 100 Amp 24-Space 48-Circuit Indoor Convertible Main Breaker Load Center for Plug-on Neutral breakers includes the cover, a selection of breakers and is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and is compatible with Square D Homeline circuit breakers. Square D Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline breaker boxes are engineered for fast installation and wire savings.
-
- Contact your local building inspector for adoptions and details.

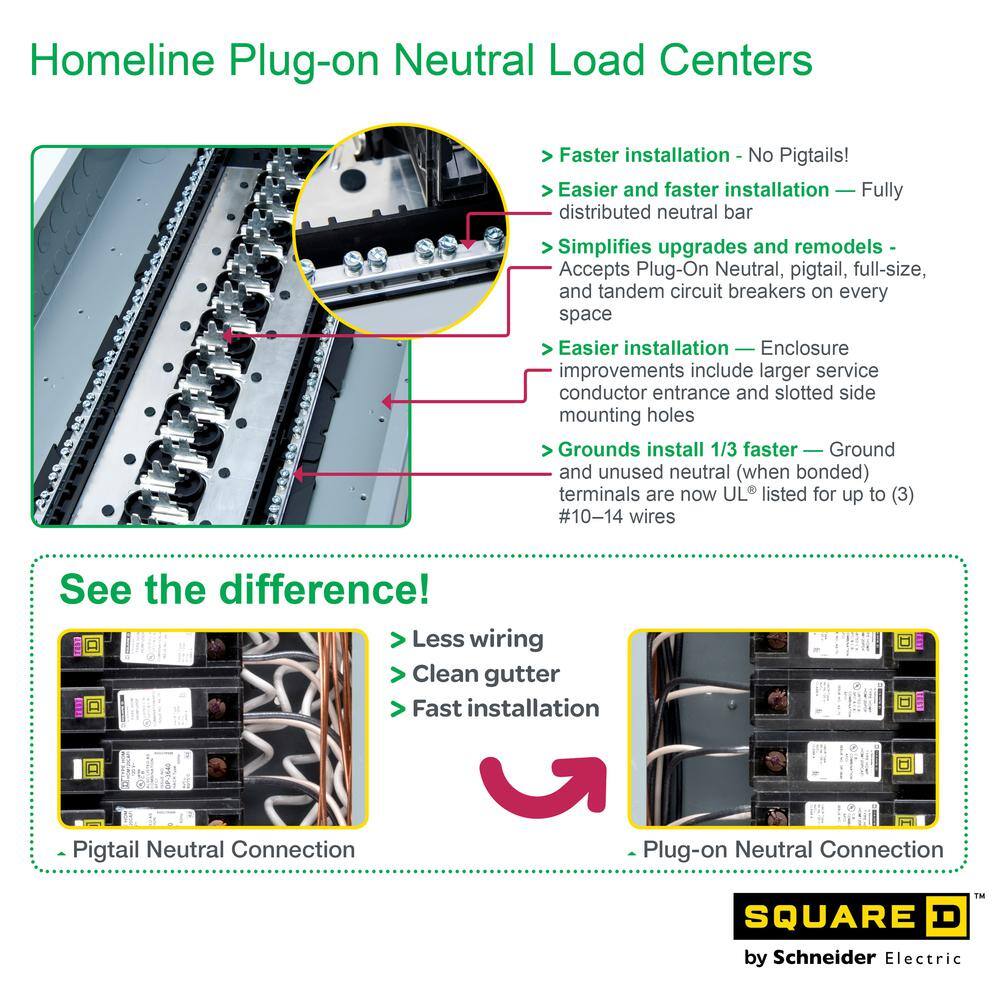

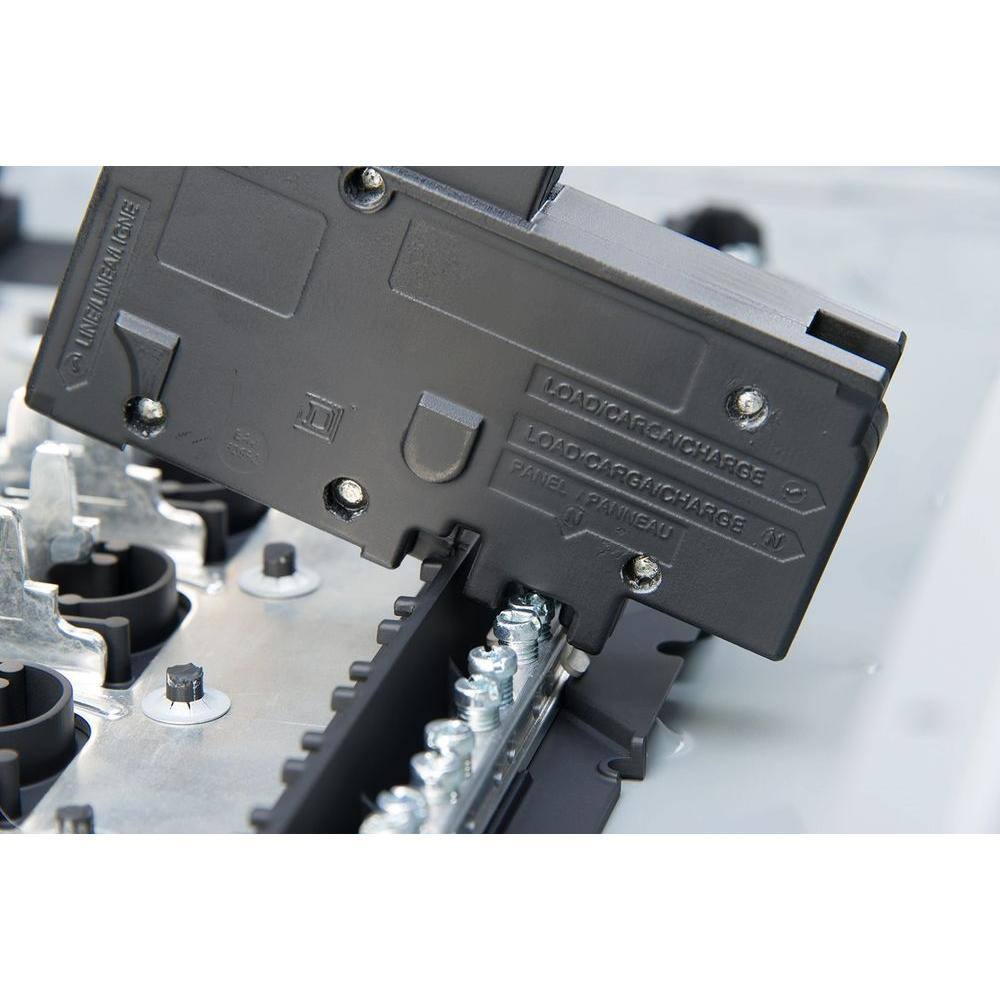

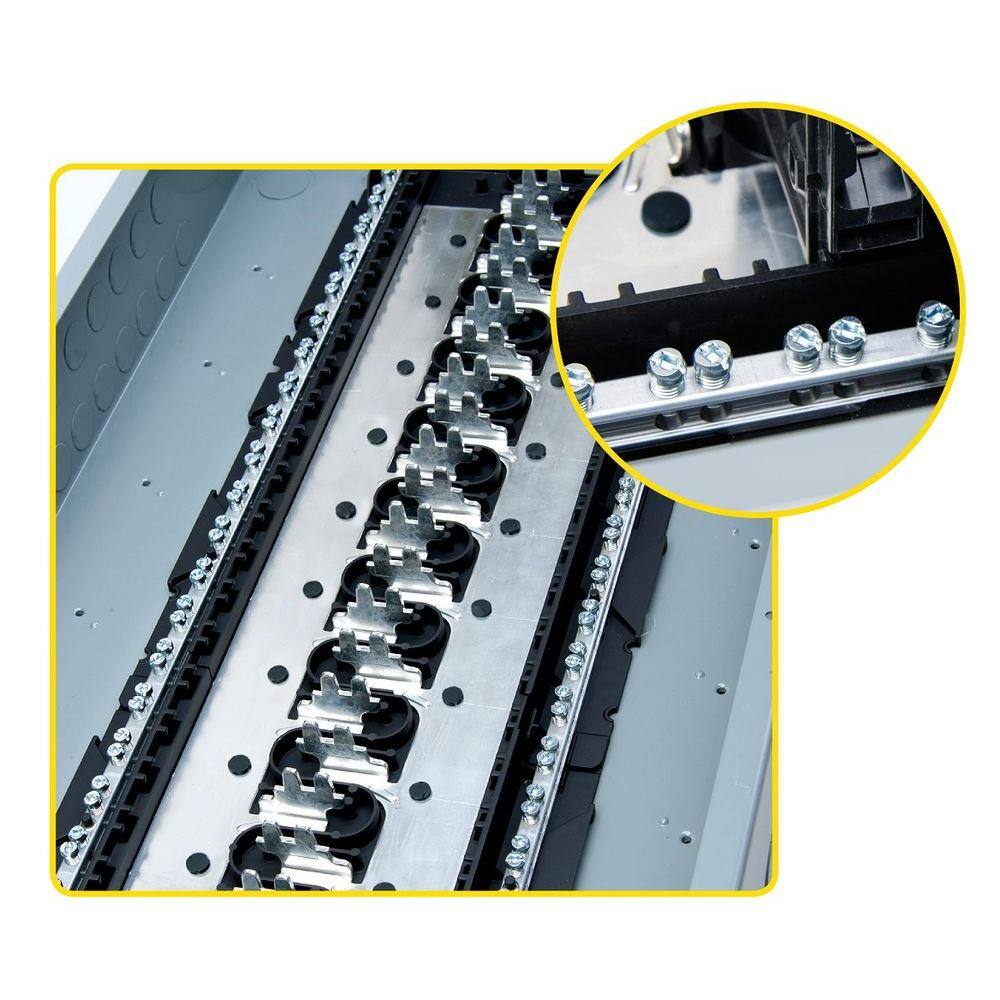

- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
- Each pole space is compatible with a Square D Homeline full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds

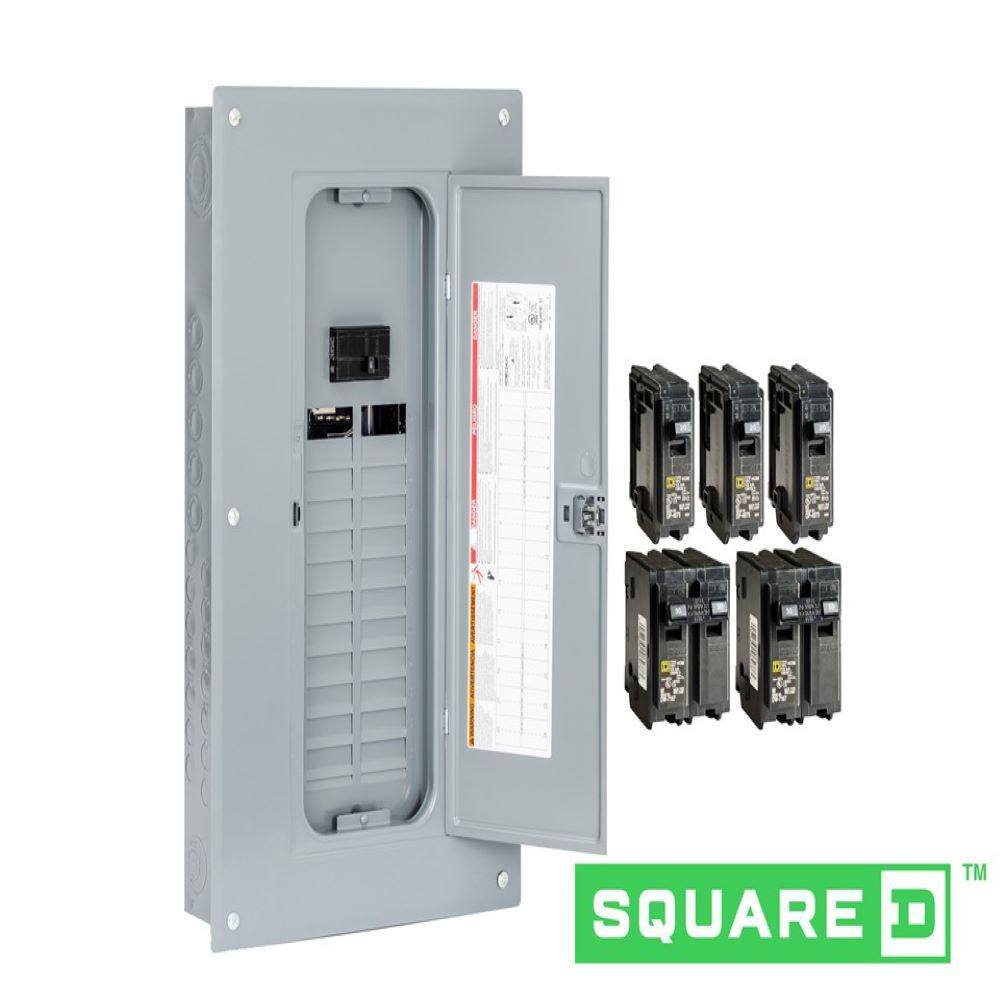

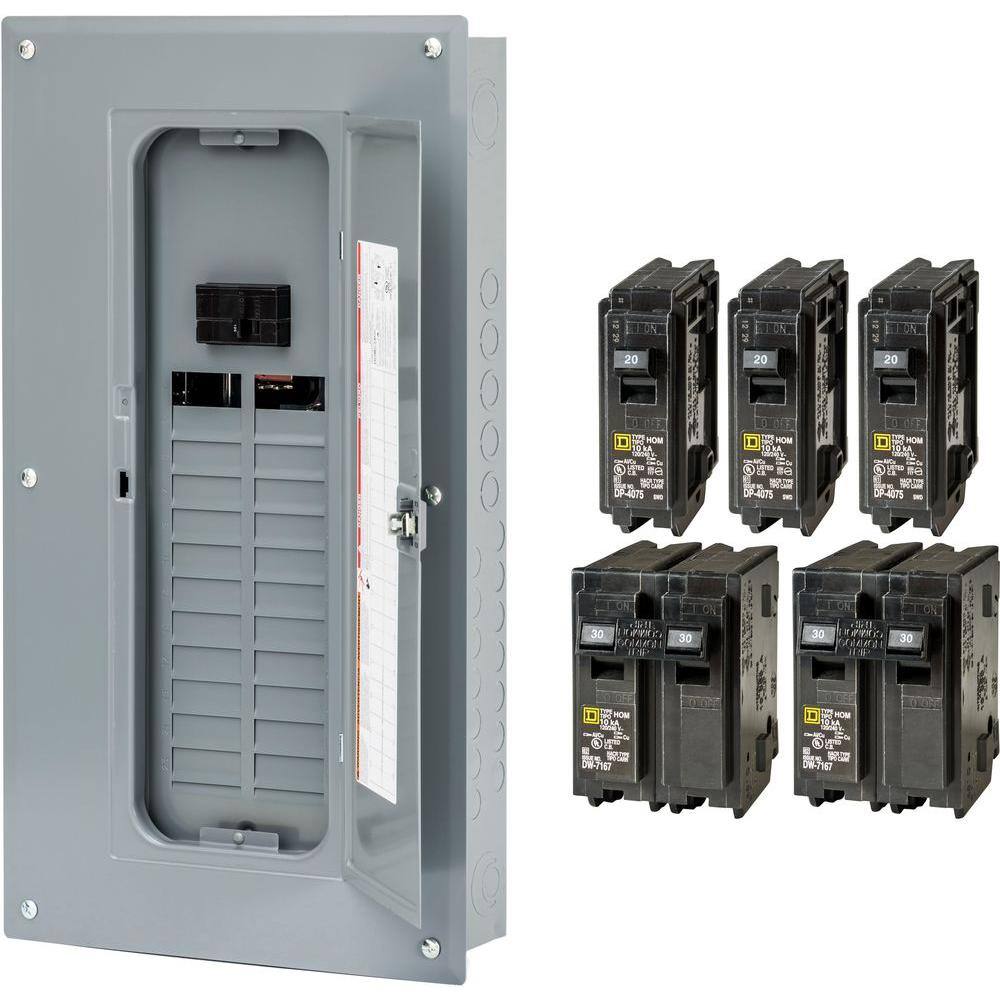

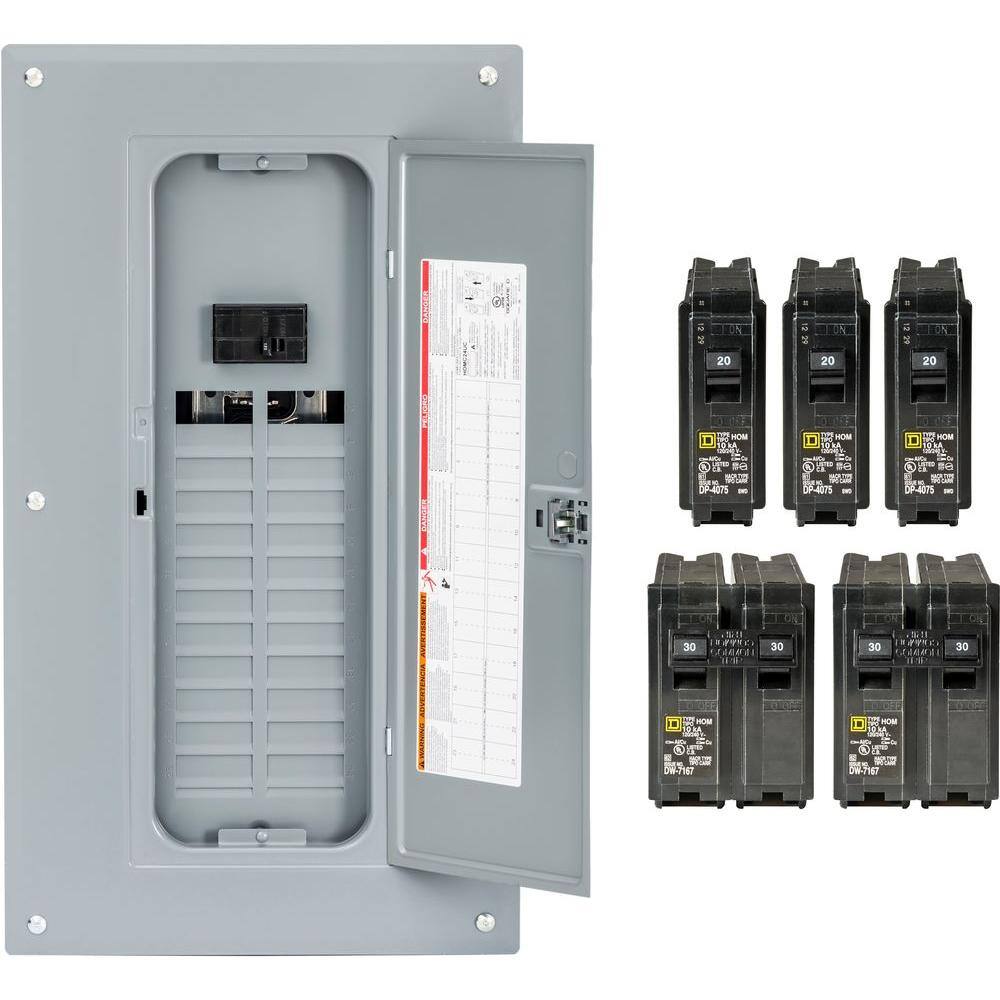

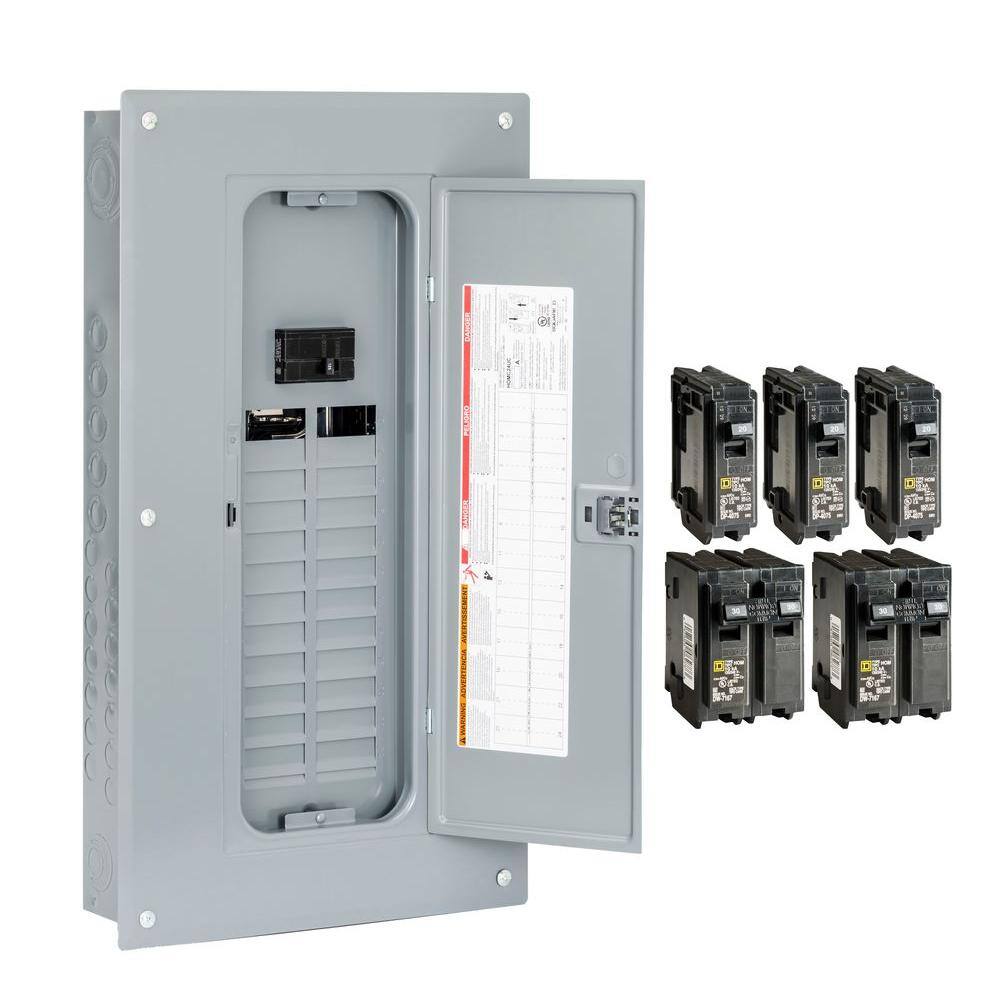

- Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover
- Accommodates plug-on secondary surge arrestor (sold separately)
- Overhead/underground feed simply by rotating the device before installing
- Single phase, Indoor Main Breaker Homeline Breaker Box
- Rated 120/240 VAC and 22,000 AIR short circuit current rating

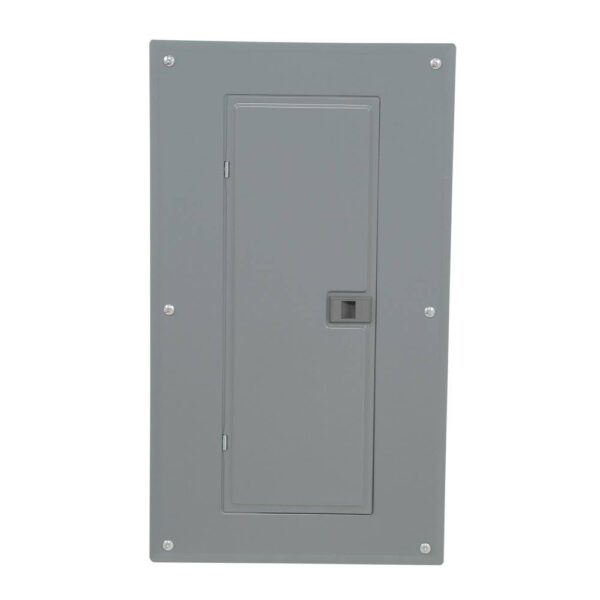

- Automatic flush adjusting cover requires less time to complete the job
- Designed with straight-in mains to save expensive cable and time
- Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
- 3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
- Made in the USA

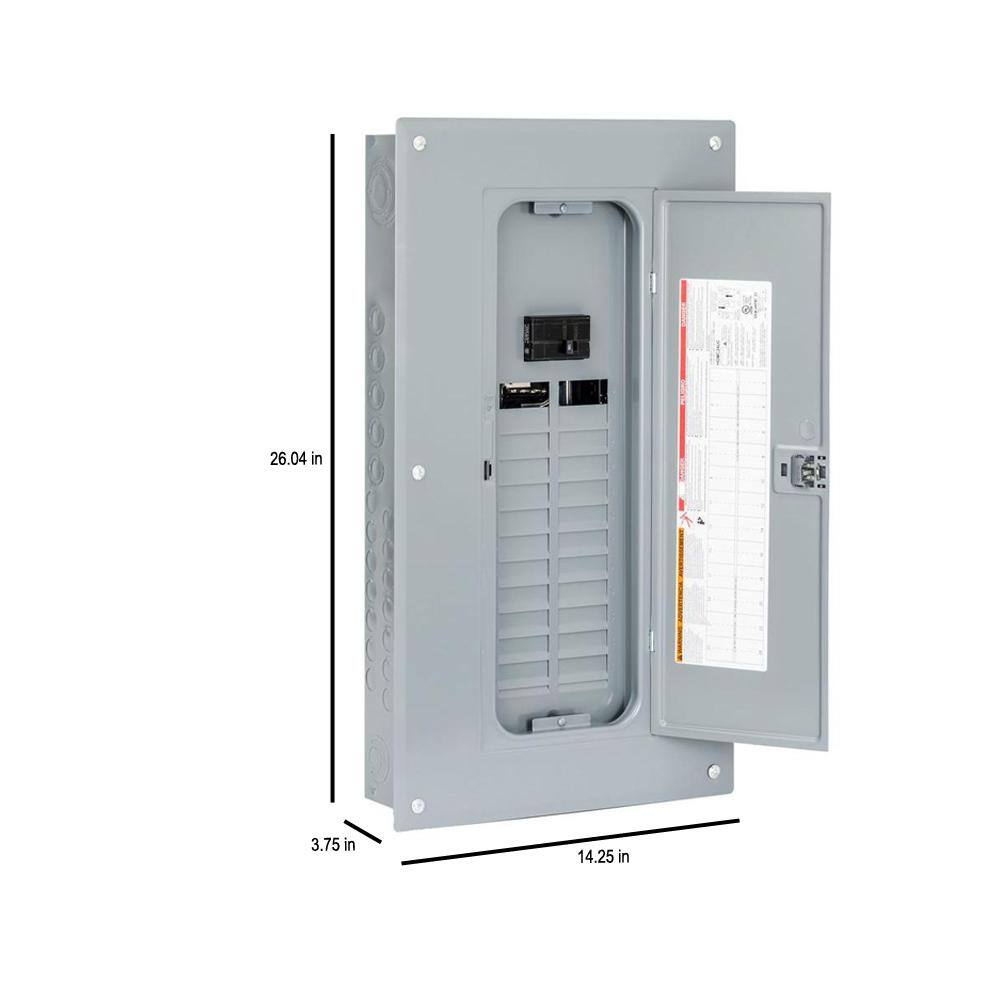

Dimensions
| Load center depth (in.) | 3.75 | Load center height (in.) | 26.04 |
|---|---|---|---|
| Load center width (in.) | 14.25 |
Details
| Electrical Product Type | Load Center and Breaker Kit | Indoor/Outdoor | Indoor |
|---|---|---|---|
| Load Center Mounting Type | Flush, Surface | Load Center Type | Main Breaker |
| Maximum Amperage (amps) | 100 | Mounting Type | Plug-On Neutral |
| NEMA Configuration | NEMA 1 | NEMA Configuration Receptacle | No Receptacle |
| Number of Circuits | 48 | Number of Spaces | 24 |
| Phase Type | 1 Phase | Product Weight (lb.) | 27.86 |
| Voltage (volts) | 120/240 |
Warranty / Certifications
| Certifications and Listings | UL Listed | Manufacturer Warranty | Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers. |
|---|
