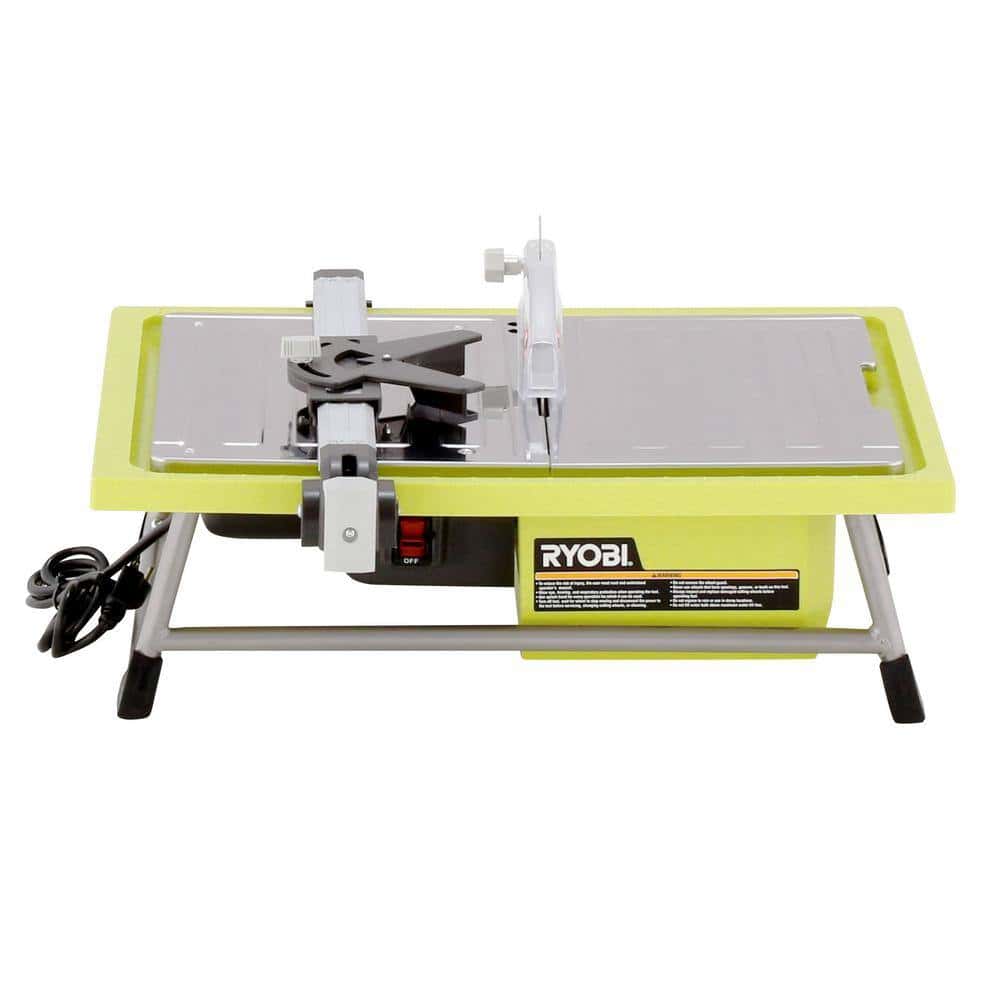

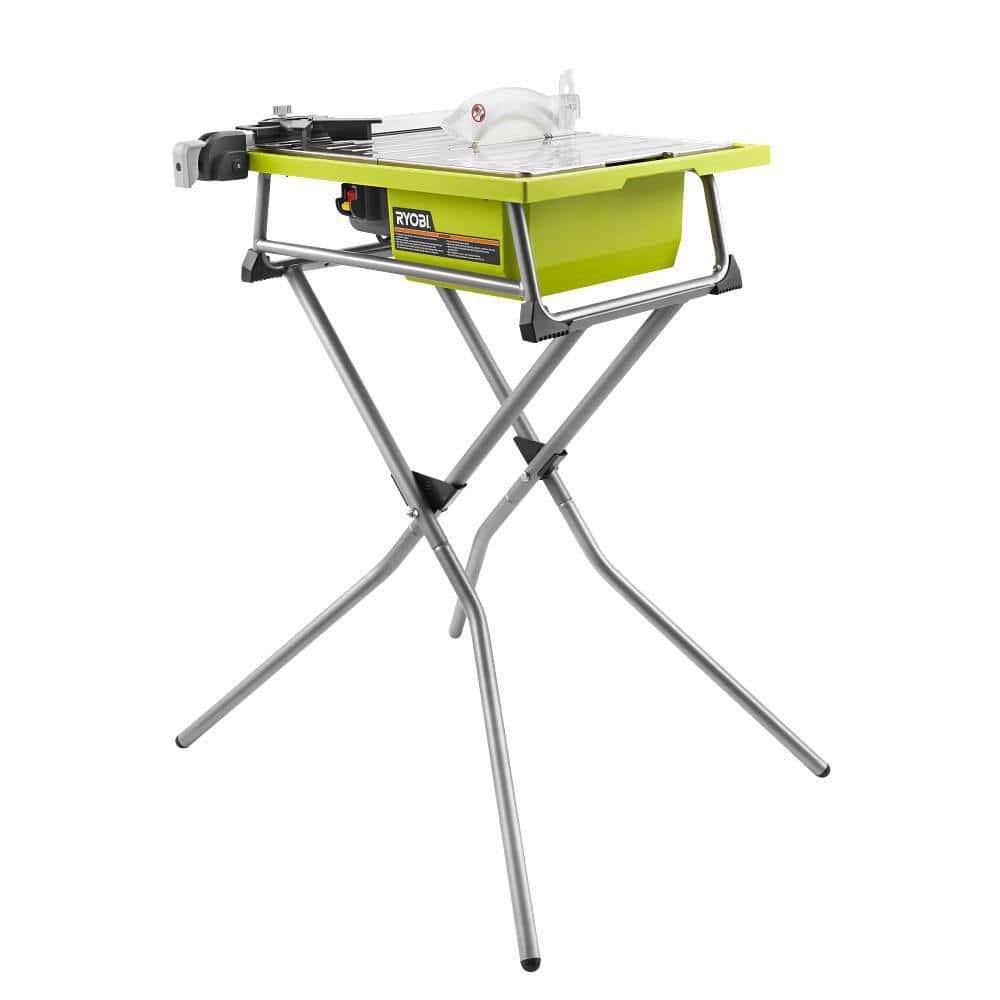

RYOBI WS722SN 7 in. 4.8 Amp Tile Saw with Stand
RYOBI introduces the 7 in. 4.8 Amp Tile Saw with Stand. This saw also features best in class cutting capacity with the ability to rip 20 in. tile and diagonally cut 13 in. tile. The tile saw cuts through ceramic, porcelain and stone tiles up to 1-1/4 in. thick with ease and accuracy. This saw has a tilting stainless-steel table to allow bevel cuts at 22.5 degree and 45 degree angles. The saw features a rip guide that locks in place on the front and rear rails to ensure precision cuts that are straight every time. Backed by the RYOBI 3-Year Manufacturer’s Warranty, the 7 in. 4.8 Amp Tile Saw includes a 7 in. diamond cutting wheel, wheel wrench, arbor wrench, overfill drain, splash hood assembly, miter guide assembly, rip guide, stand, and an operator’s manual.
- Miter guide allows for easy miter cuts from 0° to 45°
- Locking rip guide sets up along the front and rear scales for added precision
- Powerful induction motor powers through ceramic, porcelain and stone tile
- 7 in. continuous-rim diamond cutting wheel offers precision cutting and prevents chipping
- Cutting table tilts for precise 22.5° and 45° bevel cuts
- Water reservoir system captures run-off and provides continuous water to the cutting wheel

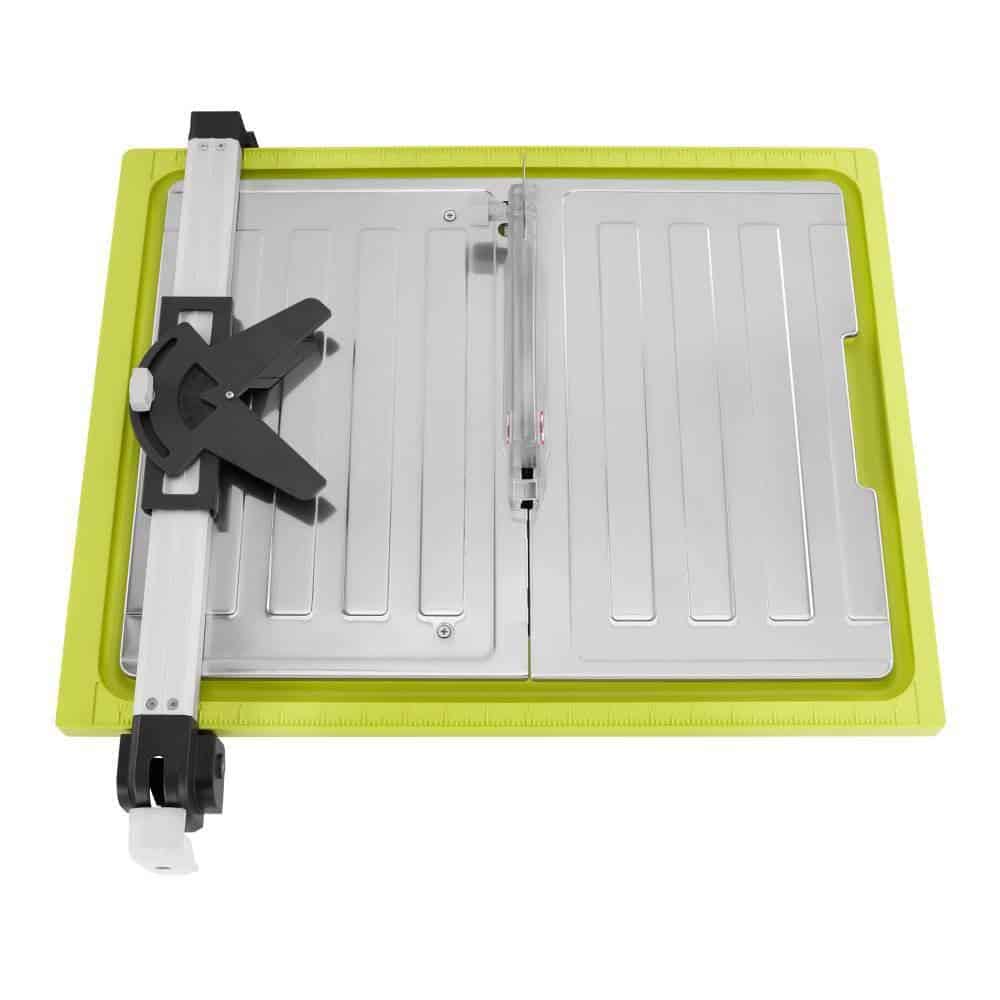

- Corrosion-resistant, stainless-steel table for increased durability
- 1-1/4 in. cutting depth capacity for thick tiles and stepping stones
- Anti-slip rubber feet for increased stability
- Clear splash hood for increased visibility
- Compatible with A114UWP RYOBI Universal Water Pump
- 3-year manufacturer’s warranty

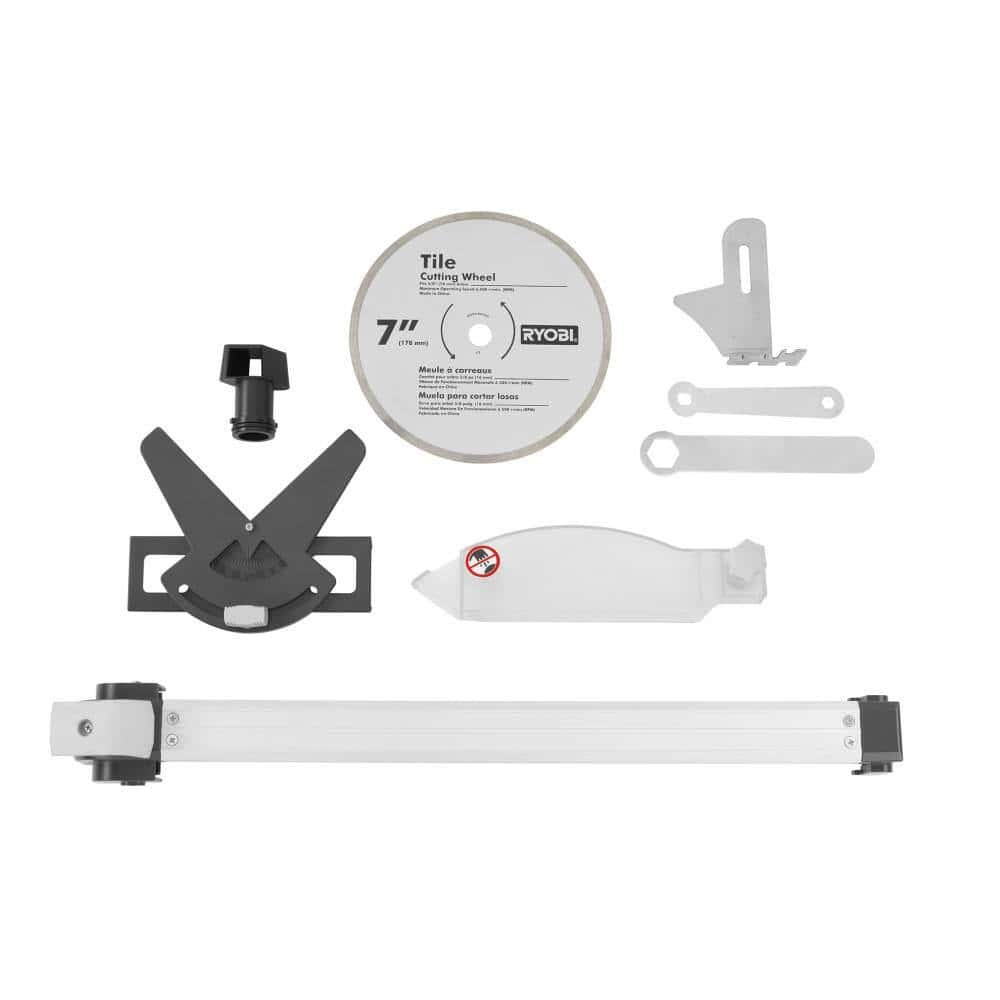

- Includes: (1) WS722 Tile Saw with 7 in. diamond cutting wheel, wheel wrench, arbor wrench, overfill drain, splash hood assembly, miter guide assembly, rip guide, stand, and operator’s manual
- California residentssee Prop 65 WARNINGS
Dimensions
| Blade Size (in.) |
7 in |
Blade Thickness (in.) |
.047 |
| Product Depth (in.) |
17.5 in |
Product Height (in.) |
7 in |
| Product Width (in.) |
19.63 in |
Work Table Height From Floor (in.) |
35 in |
| Work Table Length (in.) |
22.5 in |
Work Table Width (in.) |
17.5 in |
Details
| Amperage (A) |
4.8 |
Blade Type |
Diamond |
| Condition |
New |
Construction Material |
Acrylonitrile Butadiene Styrene (ABS) |
| Cord Length (ft.) |
6 |
Cordless/Corded |
Corded |
| Cuts Through |
Ceramic, Glass, Masonry, Porcelain |
Deck material |
Stainless steel |
| Dust Collection Method |
None |
Horsepower (hp) |
2.8 hp |
| Included Accessories |
Allen Key/Wrench, Blade(s) |
Maximum Speed (RPM) |
3450 RPM |
| Maximum tile cut size diagonal (in.) |
13 |
Maximum tile cut size rip (in.) |
20 |
| Portability |
Bench |
Product Weight (lb.) |
27.03 lb |
| PT Horsepower (HP) |
2-4/5 HP |
Voltage (V) |
120 V |
| Saw Blade Material |
Diamond |
Tile Saw Features |
Bevel, Stand, Water Tray |
| Tool Type |
Wet Tile Saw |
Tools Product Type |
Power Tool |
