SKIL Miter Saw MS6305-00 10-in 15 Amps Dual Bevel Sliding Compound Corded
The 10-in dual bevel sliding miter saw is powered by a 15-Amp motor that drives 4,800 RPM, delivering extended power and durability. This miter saw features a horizontal grip handle with a center located safety trigger for left- or right-handed use. The 9 detents on the stainless-steel miter plate and 11 miter locations allows for 50-degree cuts left or right, with 11 positive stop positions at commonly used angles. The tool comes equipped with a cam miter lock knob for repeatable accuracy, durability, and easy adjustments, while the tall sliding fences support 4-1/2-in base molding vertically, and 6-1/4-in crown molding vertically nested. The LED Shadow Line provides high precision cuts with greater accuracy than traditional lasers, while the lightweight design and built-in carrying handle provide convenience and portability. The quick work clamp quickly secures materials for safer cutting.
- POWERFUL 15 AMP MOTOR ?C Delivers 4,800 RPM for quick, detailed cuts
- DUAL BEVEL ?C Perform cuts in four positive stop positions at 48?? and 45?? left, 0??, and 45?? right
- LED SHADOW LINE ?C Provides high precision cuts with greater accuracy than lasers
- 2??12 CUTTING CAPACITY ?C Cross cuts lumber up to 2??12 at 90??, and 2??8 lumber at 45??
- CUTS AT COMMON ANGLES ?C Cuts up to 50?? left and right with 11 positive stops at most used angles
- SLIDE RAIL SYSTEM ?C Linear bearings allow for smooth and accurate operation to cut
- HORIZONTAL GRIP HANDLE ?C A center located safety trigger allows for left- or right-handed use
Specifications
General |
Battery Voltage |
N/A |
Series Name |
N/A |
Laser Color |
N/A |
Sub-Brand |
N/A |
Dimensions |
Arbor Diameter |
5/8-in |
Height (Inches) |
20 |
Bevel Capacity (Degrees) |
48 |
Length (Inches) |
35 |
Cord Length (Feet) |
1.83 |
Saw Blade Diameter |
10-in |
Depth of Cut at 45 Degrees (Inches) |
2 |
Tool Weight (lbs.) |
39.4 |
Depth of Cut at 90 Degrees (Inches) |
4 |
Width (Inches) |
25.5 |
Features |
Amperage (Amps) |
15 |
Maximum Miter Cut ?C Left (Degrees) |
45 |
Battery Included |
No |
Maximum Miter Cut ?C Right (Degrees) |
45 |
Bevel |
Dual |
Maximum Speed (RPM) |
5000 |
Blade Included |
Yes |
Miter Stop |
Yes |
Charger Included |
No |
Number of Teeth |
40 |
Compound |
Yes |
Power Rating (HP) |
0 |
Cordless |
No |
Quick Release Vise |
Yes |
Dust Handling |
Chute |
Slide |
Yes |
Electric Brake |
Yes |
Sliding Fence |
Yes |
Folding |
No |
Spindle Lock |
Yes |
Laser Guide |
No |
Worm Drive |
No |
Warranty |
Warranty |
5-year limited |
|
|
Certifications |
CA Residents: Prop 65 Warning(s) |
|
Safety Listing |
Not safety listed |
Miscellaneous |
UNSPSC |
27112700 |
|
|

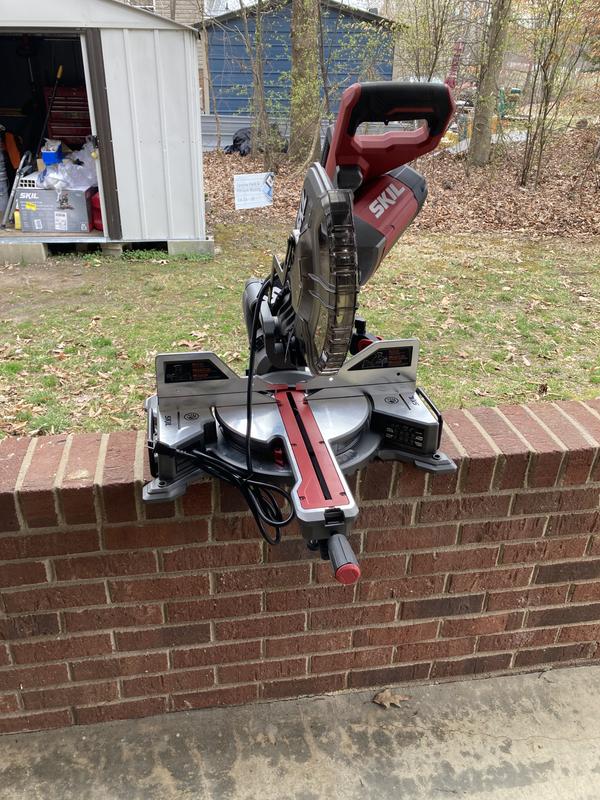

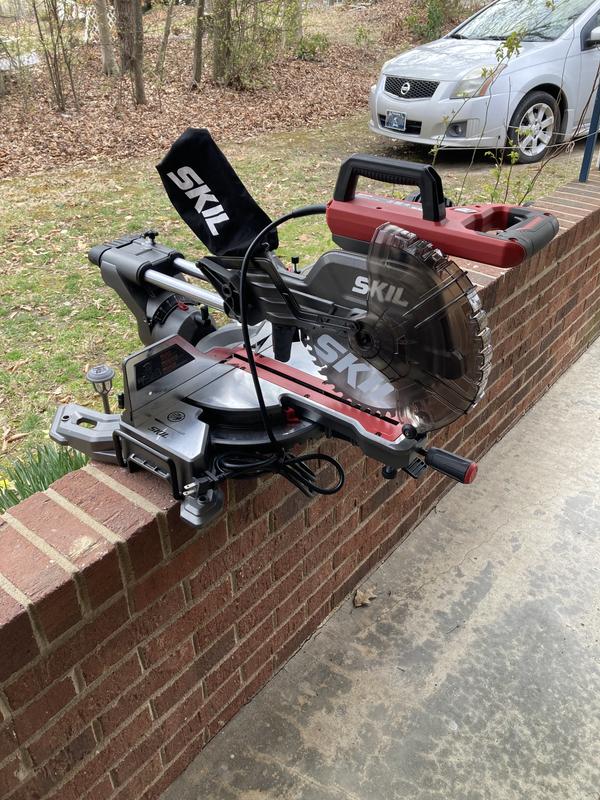

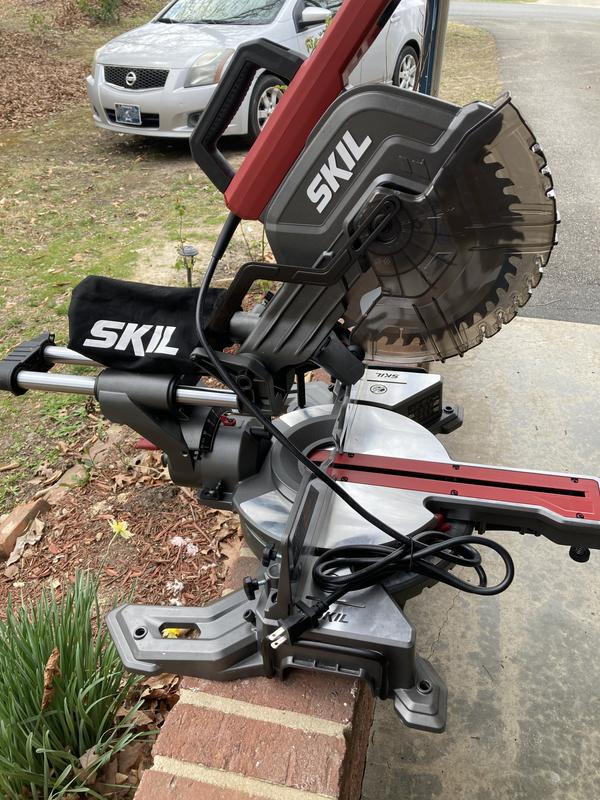

Customer Images
